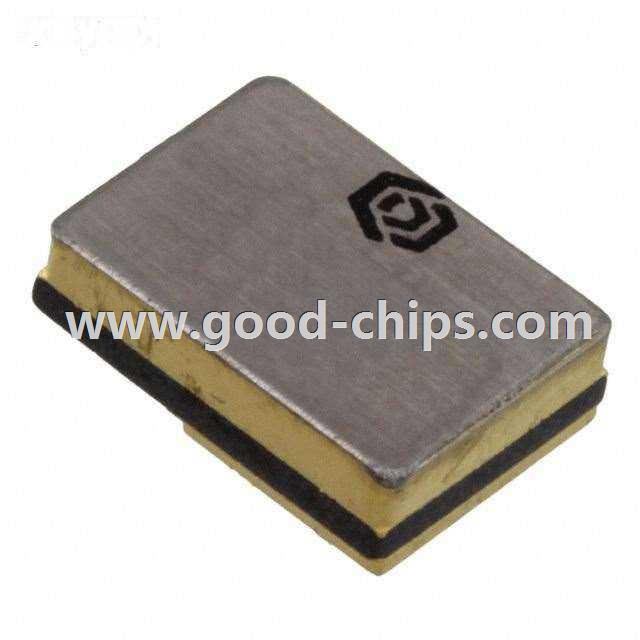

Manufacturer Part Number: | 2N7638-GA |
---|---|
Manufacturer: | GeneSiC Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |
Description: | TRANS SJT 650V 8A TO276 |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 2N7638-GA Datasheet |
Internal Part Number | 898-2N7638-GA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | 2N7638-GA Spice Model | |
Online Catalog | Silicon Carbide (SiC) Super Junction FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | GeneSiC Semiconductor | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
FET Type | Junction Transistor, Normally Off | |
FET Feature | Silicon Carbide (SiC) | |
Drain to Source Voltage (Vdss) | 650V | |
Current - Continuous Drain (Id) @ 25°C | 8A (Tc) (158°C) | |
Rds On (Max) @ Id, Vgs | 170 mOhm @ 8A | |
Vgs(th) (Max) @ Id | - | |
Gate Charge (Qg) @ Vgs | - | |
Input Capacitance (Ciss) @ Vds | 720pF @ 35V | |
Power - Max | 200W | |
Operating Temperature | -55°C ~ 225°C (TJ) | |
Mounting Type | Surface Mount | |
Package / Case | TO-276AA | |
Supplier Device Package | TO-276 | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 2N7638-GA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
2N7638-GA is in stock for immediate shipping now. We are the distributor of GeneSiC Semiconductor all series components. The condition of 2N7638-GA is new and unused, you can buy 2N7638-GA GeneSiC Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2N7638-GA.
