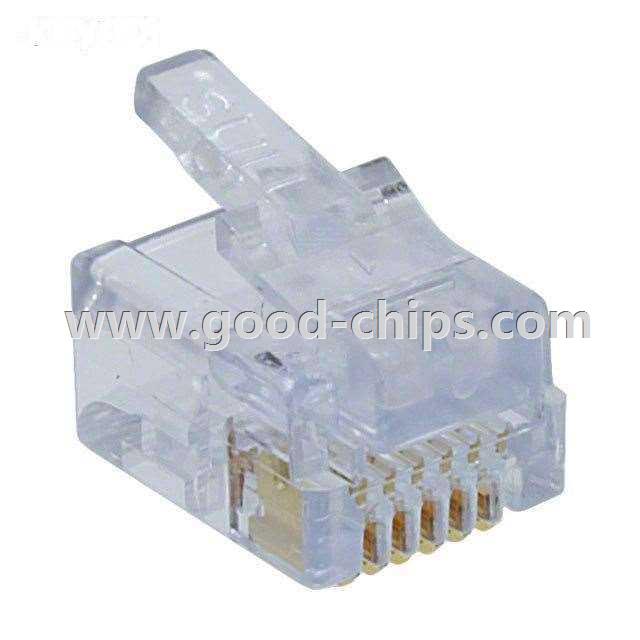

| Manufacturer Part Number: | 300566EZ |
|---|---|
| Manufacturer: | Winchester Electronics |
| Product Category: | Modular Connectors - Plugs |
| Available Quantity: | 9380 Pieces |
| Unit Price: | Quote by Email |
| Description: | Plug Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Position Cat5 IDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 300566EZ Datasheet |
| Internal Part Number | 898-300566EZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | EZ-RJ45™ Series | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Plugs | |
| Manufacturer | Winchester Electronics | |
| Series | EZ-RJ45™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug | |
| Cable Type | - | |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) | |
| Features | - | |
| Shielding | - | |
| Ratings | Cat5 | |
| Ingress Protection | - | |
| Termination | IDC | |
| Length | - | |
| Color | - | |
| Wire Gauge | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Contact Material | - | |
| Current Rating | - | |
| Voltage Rating | - | |
| Housing Material | - | |
| Shield Material | - | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 300566EZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
300566EZ is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of 300566EZ is new and unused, you can buy 300566EZ Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 300566EZ.
