| Manufacturer Part Number: | 3005W5SXX56N40X |
|---|---|
| Manufacturer: | Conec |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9129 Pieces |
| Unit Price: | Quote by Email |

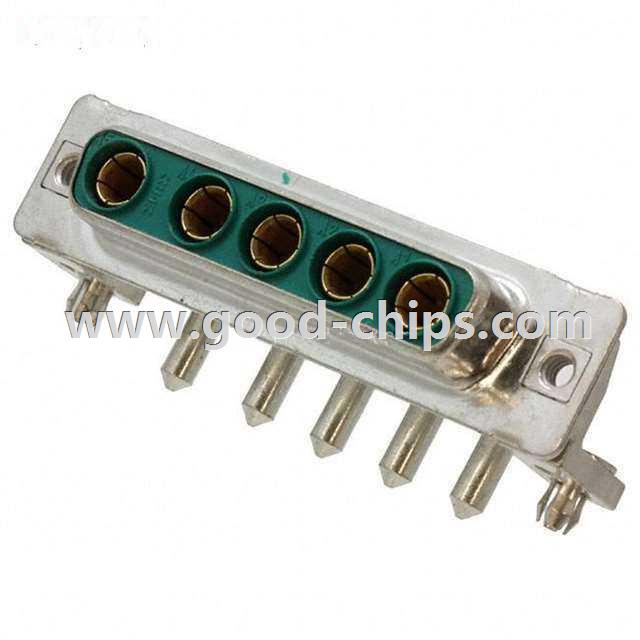

| Description: | 5 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector, Board Edge, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3005W5SXX56N40X Datasheet |
| Internal Part Number | 898-3005W5SXX56N40X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS/Reach Cert of Compliance | |
| Featured Product | Conec – Combination D-SUB Connectors | |
| Online Catalog | 30xxWx Series - Conec | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Conec | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 5 (Power) | |
| Number of Rows | 1 | |
| Shell Size, Connector Layout | 3 (DB, B) - 5W5 | |
| Contact Type | Power | |
| Mounting Type | Board Edge, Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | 20A | |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
| Color | Green | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3005W5SXX56N40X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3005W5SXX56N40X is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 3005W5SXX56N40X is new and unused, you can buy 3005W5SXX56N40X Conec with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3005W5SXX56N40X.
