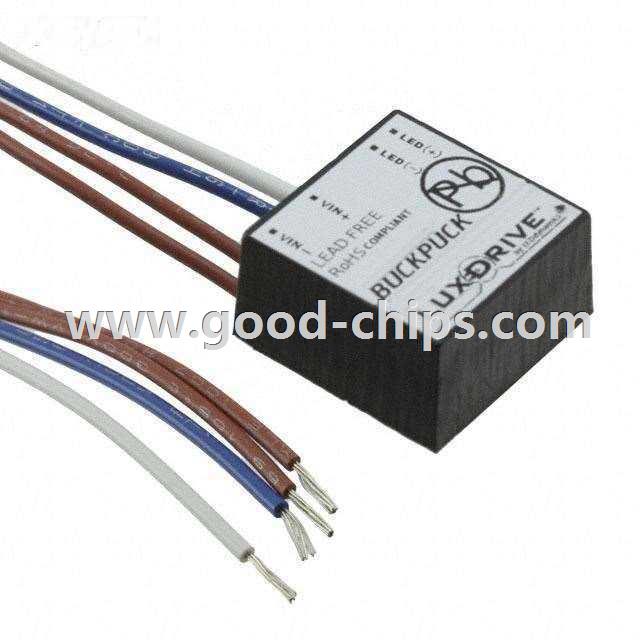

| Manufacturer Part Number: | 3023-A-N-700 |
|---|---|
| Manufacturer: | LEDdynamics Inc. |
| Product Category: | LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 700mA 32V (Max) Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3023-A-N-700 Datasheet |
| Internal Part Number | 898-3023-A-N-700 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | BuckPuck™ 3021/3023 Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | LEDdynamics Inc. | |
| Series | BuckPuck™ 3021/3023 | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 7VAC | |
| Voltage - Input (Max) | 24VAC | |
| Voltage - Output | 32V (Max) | |
| Current - Output (Max) | 700mA | |
| Power (Watts) | 22W | |
| Voltage - Isolation | - | |
| Dimming | - | |
| Features | SCP | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 80°C | |
| Efficiency | 95% | |
| Termination Style | Wire Leads | |
| Size / Dimension | 0.83" L x 0.83" W x 0.43" H (21.0mm x 21.0mm x 11.0mm) | |
| Mounting Type | Through Hole | |
| Approvals | - | |
| Weight | 0.001 KG | |
| Standard Package | 10 | |
| Application | Email for details | |
| Replacement Part | 3023-A-N-700 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3023-A-N-700 is in stock for immediate shipping now. We are the distributor of LEDdynamics Inc. all series components. The condition of 3023-A-N-700 is new and unused, you can buy 3023-A-N-700 LEDdynamics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3023-A-N-700.
