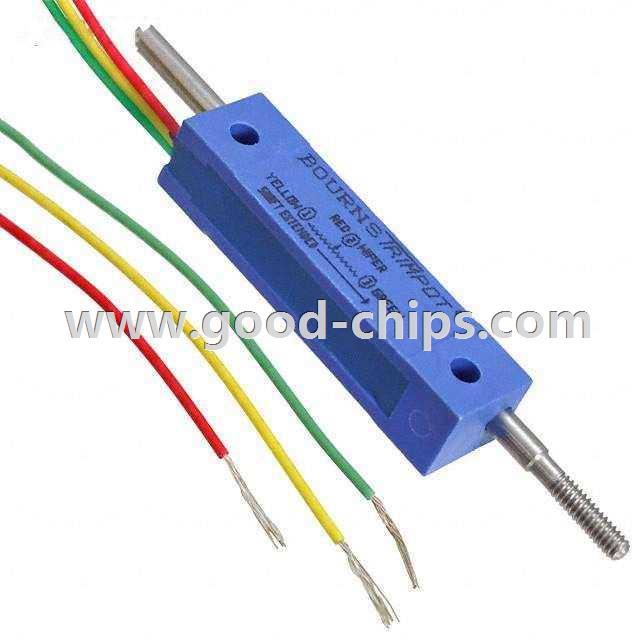

| Manufacturer Part Number: | 3048L-4-502 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Position Sensors - Angle, Linear Position Measuring |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | Resistive Sensor Linear Position Round Shaft Wire Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3048L-4-502 Datasheet |
| Internal Part Number | 898-3048L-4-502 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Bourns Non-contacting Programmable Position Sensors - Another Geek Moment Product Preview | |
| RoHS Information | 3048 Series Material Declaration | |
| 3D Model | 3048L.stp | |
| PCN Other | Multiple Changes 01/Dec/2012 | |
| Online Catalog | 3046 and 3048 Series | |
| Category | Sensors, Transducers | |
| Family | Position Sensors - Angle, Linear Position Measuring | |
| Manufacturer | Bourns Inc. | |
| Series | - | |
| Part Status | Active | |
| For Measuring | Linear Position | |
| Technology | Resistive | |
| Rotation Angle - Electrical, Mechanical | - | |
| Linear Range | 0 ~ 10.16mm (0 ~ 0.40") | |
| Output | Resistive | |
| Output Signal | - | |
| Actuator Type | Round Shaft | |
| Linearity | ±5% | |
| Resistance (Ohms) | 5k | |
| Resistance Tolerance | ±20% | |
| Voltage - Supply | - | |
| Mounting Type | Chassis Mount | |
| Termination Style | Wire Leads | |
| Operating Temperature | -55°C ~ 125°C | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3048L-4-502 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3048L-4-502 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3048L-4-502 is new and unused, you can buy 3048L-4-502 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3048L-4-502.
