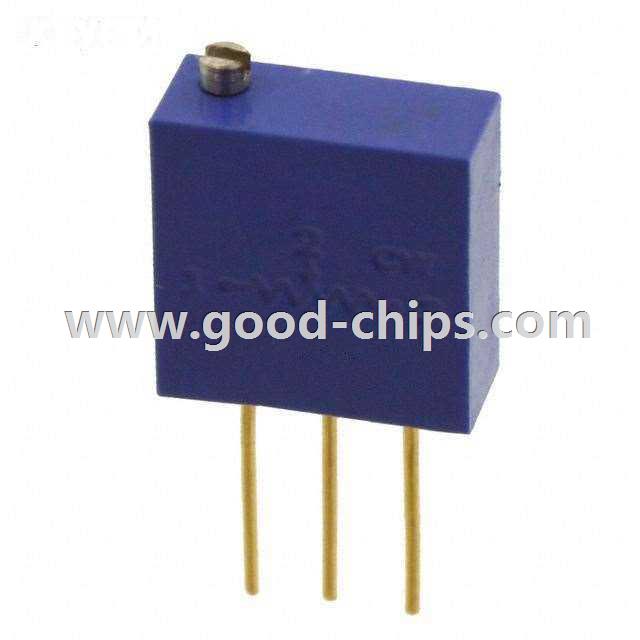

| Manufacturer Part Number: | 3290W-1-502M |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Trimmer Potentiometers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 5k Ohm 1W PC Pins Panel Mount, Through Hole Trimmer Potentiometer Wirewound 25 Turn Top Adjustment |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3290W-1-502M Datasheet |
| Internal Part Number | 898-3290W-1-502M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 3290W001.stp 3290W001.igs | |
| Category | Potentiometers, Variable Resistors | |
| Family | Trimmer Potentiometers | |
| Manufacturer | Bourns Inc. | |
| Series | Trimpot® 3290 - Sealed | |
| Packaging | Tube | |
| Part Status | Active | |
| Resistance (Ohms) | 5k | |
| Power (Watts) | 1W | |
| Tolerance | ±5% | |
| Temperature Coefficient | ±50ppm/°C | |
| Number of Turns | 25 | |
| Adjustment Type | Top Adjustment | |
| Resistive Material | Wirewound | |
| Mounting Type | Panel Mount, Through Hole | |
| Termination Style | PC Pins | |
| Size / Dimension | Rectangular - 0.375" x 0.150" Face x 0.375" L (9.53mm x 3.81mm x 9.53mm) | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3290W-1-502M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3290W-1-502M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3290W-1-502M is new and unused, you can buy 3290W-1-502M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3290W-1-502M.
