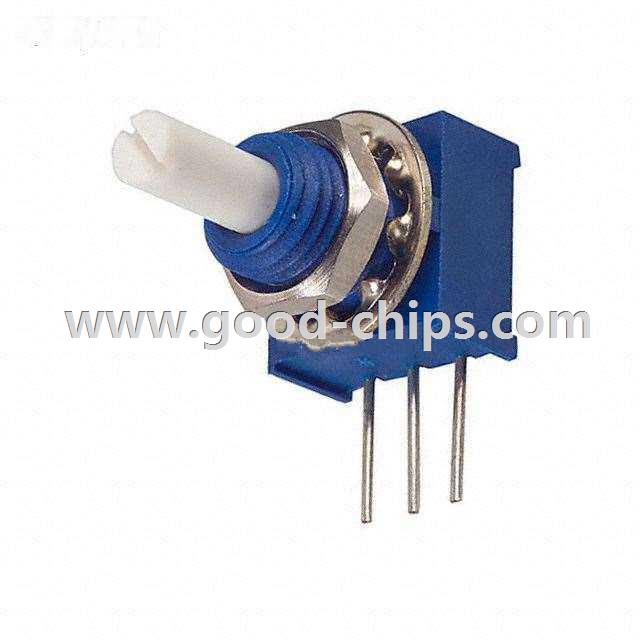

| Manufacturer Part Number: | 3315C-001-006 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Encoders |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ENCODR 9MM SQ RT/ANGL W/NUT&WSHR |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3315C-001-006 Datasheet |
| Internal Part Number | 898-3315C-001-006 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | 3315 Model 18/Nov/2011 | |
| PCN Design/Specification | PBT Resin Jun/2011 | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | Bourns Inc. | |
| Series | 3315 | |
| Part Status | Obsolete | |
| Encoder Type | Mechanical | |
| Output Type | Quadrature (Incremental) | |
| Pulses per Revolution | 6 | |
| Voltage - Supply | - | |
| Actuator Type | 1/8" Dia Slotted End | |
| Detent | No | |
| Built in Switch | No | |
| Mounting Type | Panel, PCB Through Hole | |
| Orientation | Right Angle | |
| Termination Style | PC Pin | |
| Rotational Life (Cycles Min) | 100K | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3315C-001-006 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3315C-001-006 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3315C-001-006 is new and unused, you can buy 3315C-001-006 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3315C-001-006.
