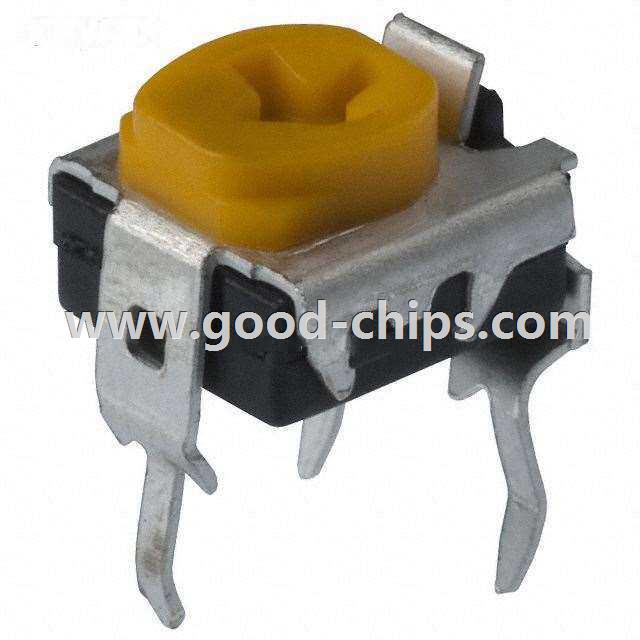

| Manufacturer Part Number: | 3318F-1-501 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Trimmer Potentiometers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 500 Ohm 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1 Turn Top Adjustment |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3318F-1-501 Datasheet |
| Internal Part Number | 898-3318F-1-501 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Trimmer Models 18/May/2009 | |
| Category | Potentiometers, Variable Resistors | |
| Family | Trimmer Potentiometers | |
| Manufacturer | Bourns Inc. | |
| Series | Trimpot® 3318 - Open Frame | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Resistance (Ohms) | 500 | |
| Power (Watts) | 0.1W, 1/10W | |
| Tolerance | ±30% | |
| Temperature Coefficient | ±1000ppm/°C | |
| Number of Turns | 1 | |
| Adjustment Type | Top Adjustment | |
| Resistive Material | Carbon | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pins | |
| Size / Dimension | Square - 0.264" x 0.252" Face x 0.250" H (6.70mm x 6.40mm x 6.35mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3318F-1-501 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3318F-1-501 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 3318F-1-501 is new and unused, you can buy 3318F-1-501 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3318F-1-501.
