Manufacturer Part Number: | 33482-2001 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

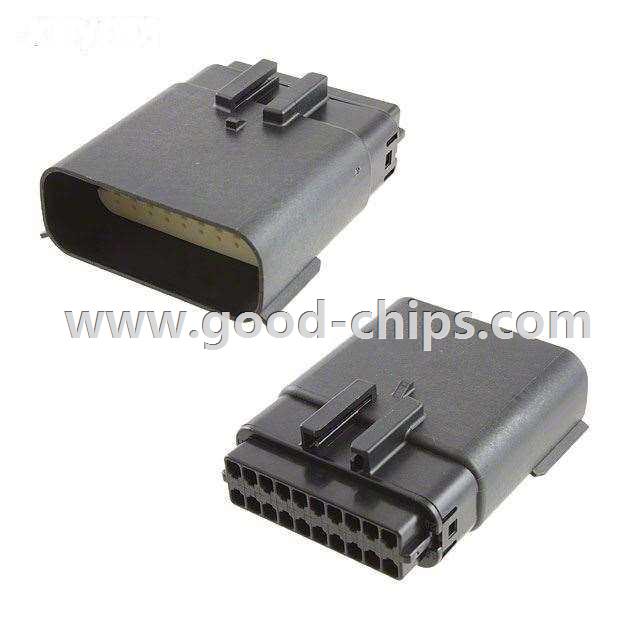

Description: | 20 Position Rectangular Housing Connector Plug Black 0.138" (3.50mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 33482-2001 Datasheet |
Internal Part Number | 898-33482-2001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | World Solar Challenge 2011 – Preview World Solar Challenge 2011 – Aerodynamics vs. Engineering | |
RoHS Information | 33482-2001 Cert of Compliance | |
3D Model | 33482-2001.stp 33482-2001 .pdf | |
PCN Obsolescence/ EOL | 3348220** Series 07/Jul/2014 | |
PCN Assembly/Origin | 33482 Series 10/Feb/2015 33482 31/Jul/2015 33482 Series 21/Dec/2015 | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | Molex Connector Corporation | |
Series | MX150™ 33482 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Connector Type | Plug | |
Contact Type | Blade Pin | |
Number of Positions | 20 | |
Pitch | 0.138" (3.50mm) | |
Number of Rows | 2 | |
Row Spacing | - | |
Mounting Type | Free Hanging (In-Line) | |
Contact Termination | Crimp | |
Fastening Type | Locking Ramp | |
Color | Black | |
Features | Sealed | |
Note | Contacts Not Provided | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 33482-2001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
33482-2001 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 33482-2001 is new and unused, you can buy 33482-2001 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 33482-2001.
