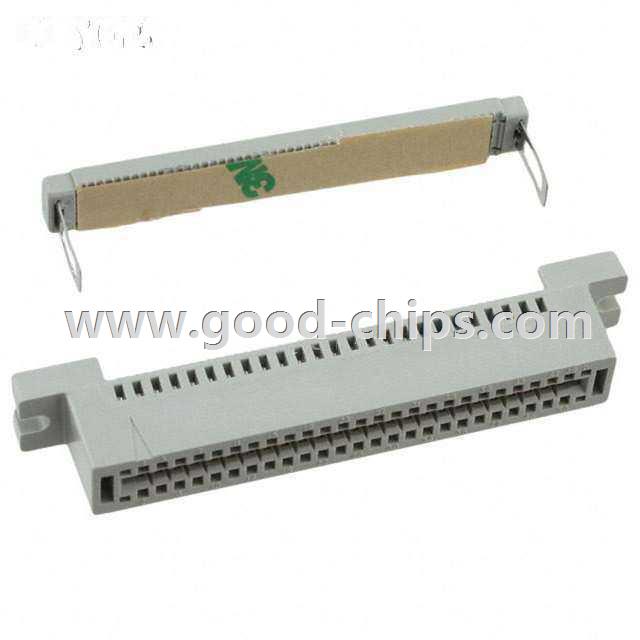

| Manufacturer Part Number: | 3415-0000 |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CARD EDGE CONN 50 POS W/FLANGE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3415-0000 Datasheet |
| Internal Part Number | 898-3415-0000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IDC Wiremount Connectors Primer | |
| Featured Product | Ribbon Cable Assemblies | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | 3M | |
| Series | 3000 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Card Type | Non Specified - Dual Edge | |
| Gender | Female | |
| Number of Positions/Bay/Row | 25 | |
| Number of Positions | 50 | |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | |
| Number of Rows | 2 | |
| Pitch | 0.100" (2.54mm) | |
| Features | - | |
| Mounting Type | Panel Mount | |
| Termination | IDC | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Contact Type | - | |
| Color | Gray | |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | |
| Operating Temperature | -55°C ~ 105°C | |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled | |
| Read Out | Dual | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3415-0000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3415-0000 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 3415-0000 is new and unused, you can buy 3415-0000 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3415-0000.
