Manufacturer Part Number: | 35505-6180-A00GF |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 9113 Pieces |
Unit Price: | Quote by Email |

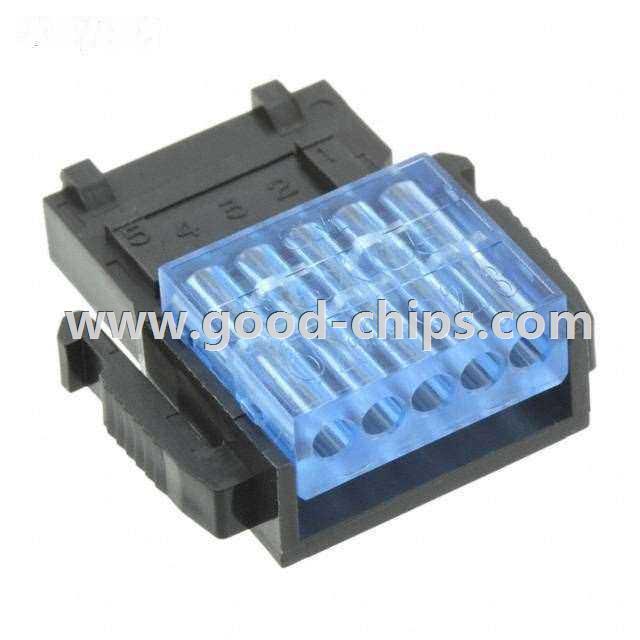

Description: | 5 Position Rectangular Socket Connector IDC Gold 18 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 35505-6180-A00GF Datasheet |
Internal Part Number | 898-35505-6180-A00GF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Power Clamp Connectors and Cables Solutions Two and Four Position Link Connectors | |
3D Model | 35505-6XX0-A00.igs 35505-6XX0-A00.x_t 35505-6XX0-A00.stp | |
Online Catalog | Power Clamp, 355 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | 3M | |
Series | Power Clamp, 355 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Socket | |
Contact Type | Female Socket | |
Number of Positions | 5 | |
Pitch | 0.118" (3.00mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | Latch Lock | |
Cable Termination | IDC | |
Wire Type | Discrete | |
Wire Gauge | 18 AWG | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 20µin (0.51µm) | |
Color | Black | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 35505-6180-A00GF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
35505-6180-A00GF is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 35505-6180-A00GF is new and unused, you can buy 35505-6180-A00GF 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 35505-6180-A00GF.
