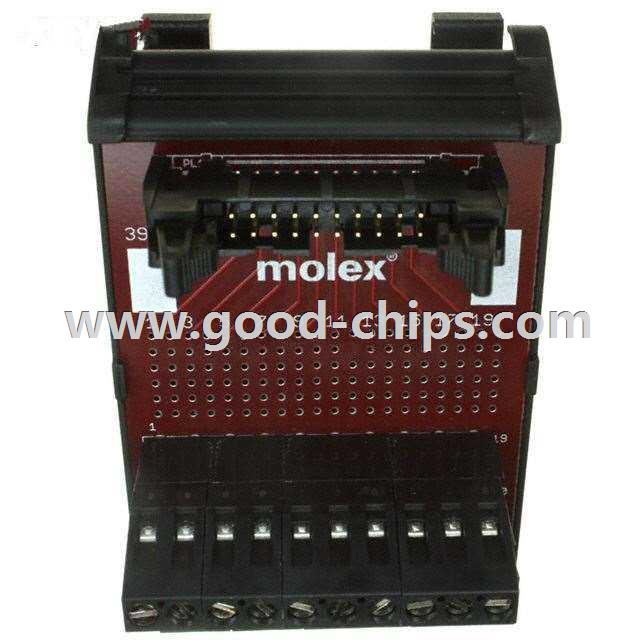

| Manufacturer Part Number: | 39170-1020 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminal Blocks - Interface Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male 12-26 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 39170-1020 Datasheet |
| Internal Part Number | 898-39170-1020 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 39170-1020.stp | |
| PCN Obsolescence/ EOL | 39170 Series 31/Dec/2009 | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Interface Modules | |
| Manufacturer | Molex Connector Corporation | |
| Series | Eurostyle™ 39170 | |
| Part Status | Obsolete | |
| Process Side Connection | Terminal Blocks - Screw Connection | |
| Control Side Connection | Rectangular, Male | |
| Control Side Cable Retainer | Latches | |
| Positions / Poles | 20 | |
| Features | Component Area | |
| Voltage - Rated | 300V | |
| Current Rating (Per Contact) | 15A | |
| Operating Temperature | 110°C | |
| Length | 2.402" (61.00mm) | |
| Width | 3.638" (92.45mm) | |
| Wire Gauge | 12-26 AWG | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 39170-1020 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
39170-1020 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 39170-1020 is new and unused, you can buy 39170-1020 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 39170-1020.
