| Manufacturer Part Number: | 39920-0508 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminal Blocks - Wire to Board |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

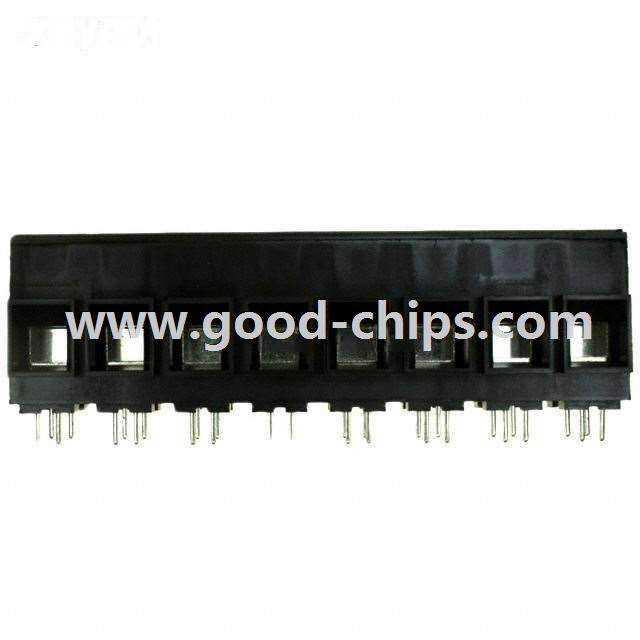

| Description: | 8 Position Wire to Board Terminal Block Horizontal with Board 0.591" (15.00mm) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 39920-0508 Datasheet |
| Internal Part Number | 898-39920-0508 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 39920-0508 Cert of Compliance | |
| 3D Model | 39920-0508.stp | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Wire to Board | |
| Manufacturer | Molex Connector Corporation | |
| Series | Eurostyle™ 39920 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Levels | 1 | |
| Positions Per Level | 8 | |
| Pitch | 0.591" (15.00mm) | |
| Mating Orientation | Horizontal with Board | |
| Current | 85A | |
| Voltage | 600V | |
| Wire Gauge | 3-14 AWG | |
| Mounting Type | Through Hole | |
| Wire Termination | Screw - Rising Cage Clamp | |
| Features | - | |
| Color | Black | |
| Operating Temperature | -40°C ~ 130°C | |
| Housing Material | Thermoplastic | |
| Contact Material - Plating | Copper - Tin Plated | |
| Clamp Material - Plating | Brass - Nickel Plated | |
| Screw Material - Plating | Steel, Stainless - Tin Plated | |
| Torque - Screw | 2.71 Nm (24 Lb-In) | |
| Screw Thread | M5 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 39920-0508 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
39920-0508 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 39920-0508 is new and unused, you can buy 39920-0508 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 39920-0508.
