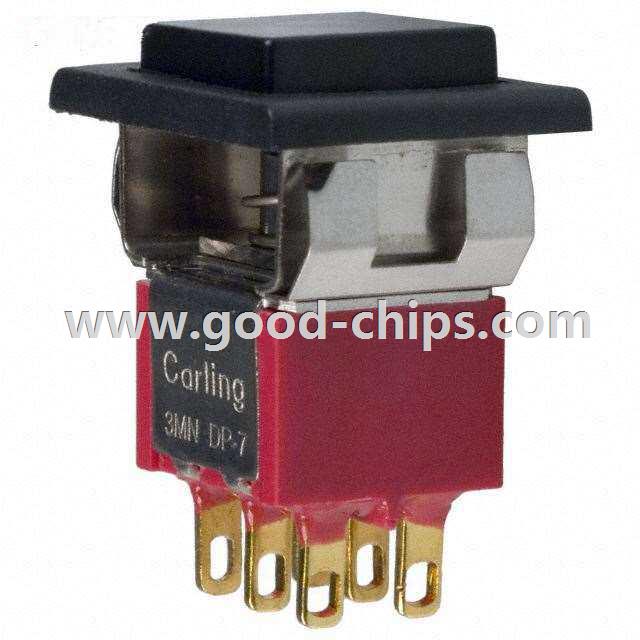

| Manufacturer Part Number: | 3MN-DP7-AP2/22-M1RE |
|---|---|
| Manufacturer: | Carling Technologies |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9251 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch DPDT Standard Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 3MN-DP7-AP2/22-M1RE Datasheet |
| Internal Part Number | 898-3MN-DP7-AP2/22-M1RE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | Carling Technologies | |
| Series | 3MN | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard | |
| Circuit | DPDT | |
| Switch Function | On-Mom | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Square, Button | |
| Color - Actuator/Cap | Black | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Solder Lug | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | Rectangular - 15.24mm x 12.70mm | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 50,000 Cycles | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 3MN-DP7-AP2/22-M1RE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
3MN-DP7-AP2/22-M1RE is in stock for immediate shipping now. We are the distributor of Carling Technologies all series components. The condition of 3MN-DP7-AP2/22-M1RE is new and unused, you can buy 3MN-DP7-AP2/22-M1RE Carling Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3MN-DP7-AP2/22-M1RE.
