Manufacturer Part Number: | 3S1-SP8-B6-M7RE |
---|---|
Manufacturer: | Carling Technologies |
Product Category: | Pushbutton Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

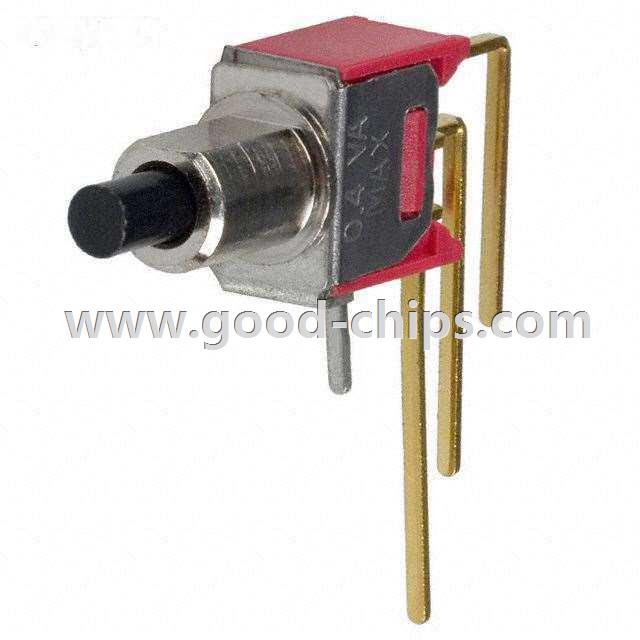

Description: | Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 3S1-SP8-B6-M7RE Datasheet |
Internal Part Number | 898-3S1-SP8-B6-M7RE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Switches | |
Family | Pushbutton Switches | |
Manufacturer | Carling Technologies | |
Series | 3S1 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Standard | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Current Rating | 0.4VA (AC/DC) | |
Voltage Rating - AC | 20V | |
Voltage Rating - DC | 20V | |
Actuator Type | Plunger for Cap | |
Color - Actuator/Cap | Black | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Through Hole, Right Angle, Vertical | |
Termination Style | PC Pin | |
Ingress Protection | - | |
Features | - | |
Panel Cutout Dimensions | - | |
Operating Temperature | -30°C ~ 85°C | |
Mechanical Life | - | |
Electrical Life | 50,000 Cycles | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 3S1-SP8-B6-M7RE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
3S1-SP8-B6-M7RE is in stock for immediate shipping now. We are the distributor of Carling Technologies all series components. The condition of 3S1-SP8-B6-M7RE is new and unused, you can buy 3S1-SP8-B6-M7RE Carling Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 3S1-SP8-B6-M7RE.
