Manufacturer Part Number: | 400MDP1R1BLKM1QE |
---|---|
Manufacturer: | E-Switch |
Product Category: | Rocker Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

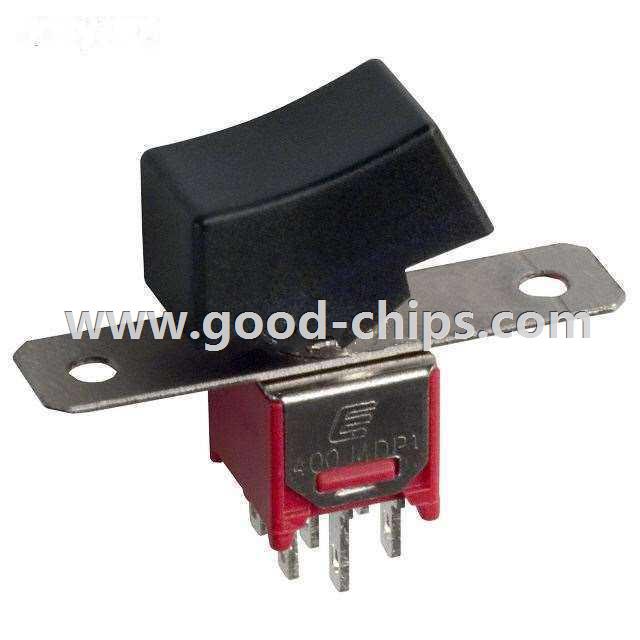

Description: | Rocker Switch DPDT 3A (AC/DC) 120V Panel Mount, Flange |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 400MDP1R1BLKM1QE Datasheet |
Internal Part Number | 898-400MDP1R1BLKM1QE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 400 Series RoHS Cert of Compliance | |
3D Model | 400MDPyR1yyyM1yE.stp | |
Category | Switches | |
Family | Rocker Switches | |
Manufacturer | E-Switch | |
Series | 400 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Circuit | DPDT | |
Switch Function | On-On | |
Current Rating | 3A (AC/DC) | |
Voltage Rating - AC | 120V | |
Voltage Rating - DC | 28V | |
Actuator Type | Concave (Curved) | |
Color - Actuator/Cap | Black | |
Actuator Marking | No Marking | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount, Flange | |
Termination Style | Solder Lug | |
Ingress Protection | - | |
Features | Epoxy Sealed Terminals | |
Panel Cutout Dimensions | Rectangular - 15.75mm x 8.89mm | |
Operating Temperature | -30°C ~ 85°C | |
Mechanical Life | - | |
Electrical Life | 30,000 Cycles | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 400MDP1R1BLKM1QE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
400MDP1R1BLKM1QE is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of 400MDP1R1BLKM1QE is new and unused, you can buy 400MDP1R1BLKM1QE E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 400MDP1R1BLKM1QE.
