Manufacturer Part Number: | 4182-3SG-300 |
---|---|
Manufacturer: | Switchcraft Inc. |
Product Category: | Circular Connectors |
Available Quantity: | 9667 Pieces |
Unit Price: | Quote by Email |

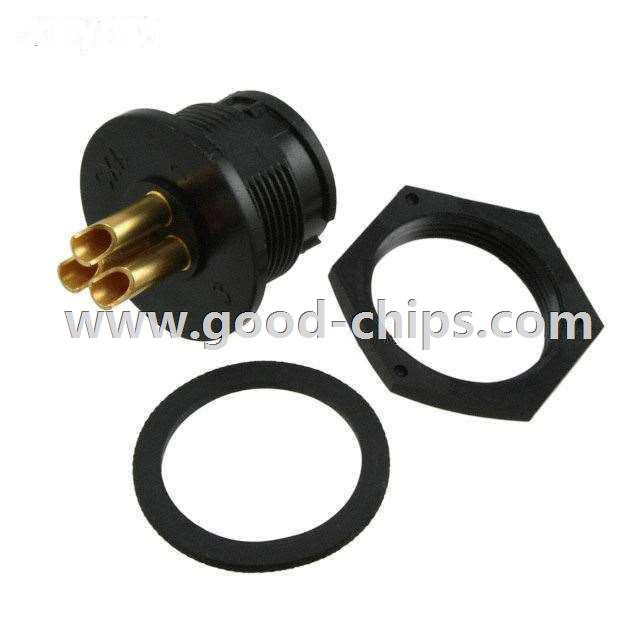

Description: | 3 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 4182-3SG-300 Datasheet |
Internal Part Number | 898-4182-3SG-300 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Multi-Con-X Wiring Layout | |
Online Catalog | Multi-Con-X® | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | Conxall/Switchcraft | |
Series | Multi-Con-X® | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 3 | |
Shell Size - Insert | - | |
Shell Size, MIL | - | |
Mounting Type | Panel Mount, Bulkhead - Front Side Nut | |
Termination | Solder Cup | |
Fastening Type | Bayonet Lock | |
Orientation | Keyed | |
Ingress Protection | Weathertight | |
Shell Material, Finish | Nylon | |
Contact Finish | Gold | |
Features | - | |
Contact Finish Thickness | - | |
Current Rating | - | |
Voltage - Rated | 600V | |
Operating Temperature | -55°C ~ 125°C | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 4182-3SG-300 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
4182-3SG-300 is in stock for immediate shipping now. We are the distributor of Switchcraft Inc. all series components. The condition of 4182-3SG-300 is new and unused, you can buy 4182-3SG-300 Switchcraft Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 4182-3SG-300.
