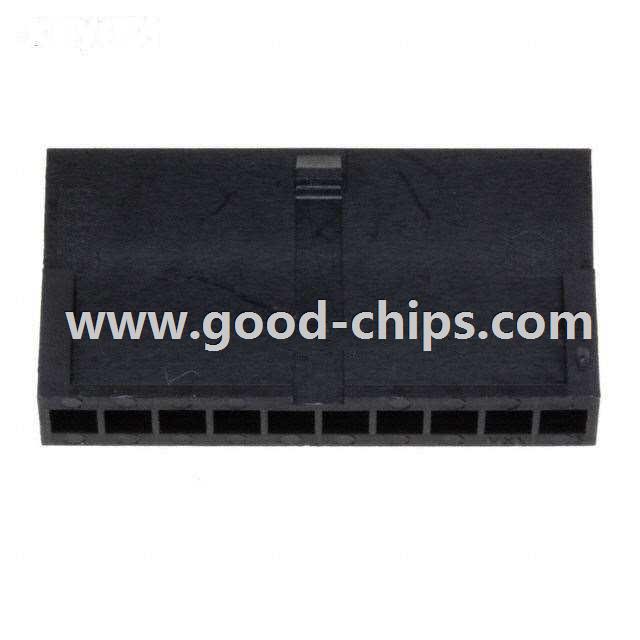

Manufacturer Part Number: | 43640-1001 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 10368 Pieces |
Unit Price: | Quote by Email |
Description: | 10 Position Rectangular Housing Connector Plug Black 0.118" (3.00mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 43640-1001 Datasheet |
Internal Part Number | 898-43640-1001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Connectors | |
Video File | Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 43640-1001 Cert of Compliance | |
Featured Product | Micro-Fit 3.0™ Interconnect System Power Connectors | |
3D Model | 43640-1001.stp 43640-1001 .pdf | |
PCN Design/Specification | Micro-Fit Resin 20/Aug/2010 Micro-Fit Test Summary 12/Aug/2010 | |
PCN Assembly/Origin | Multiple Devices Additional Supplier 04/Apr/2016 | |
Online Catalog | Micro-Fit 3.0™ and Micro-Fit 3.0 BMI™ | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | Molex Connector Corporation | |
Series | Micro-Fit 3.0™ 43640 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug | |
Contact Type | Male Pin | |
Number of Positions | 10 | |
Pitch | 0.118" (3.00mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Free Hanging (In-Line) | |
Contact Termination | Crimp | |
Fastening Type | Locking Ramp | |
Color | Black | |
Features | - | |
Note | Contacts Not Provided | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 43640-1001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
43640-1001 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 43640-1001 is new and unused, you can buy 43640-1001 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 43640-1001.
