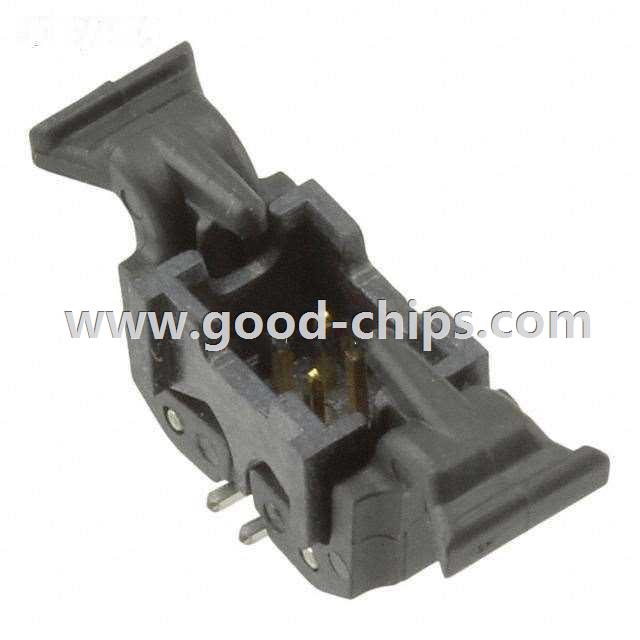

| Manufacturer Part Number: | 45204-220230 |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9260 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Positions Header, Shrouded Connector 0.050" (1.27mm) Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 45204-220230 Datasheet |
| Internal Part Number | 898-45204-220230 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | 3M™ Wire-to-Board System, 450 Series Connector Animation | |
| 3D Model | 45204-2x02.igs 45204-2x02.x_t 45204-2x02.stp | |
| Online Catalog | 452 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | 3M | |
| Series | 452 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 4 | |
| Number of Positions Loaded | All | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.050" (1.27mm) | |
| Contact Mating Length | - | |
| Mounting Type | Surface Mount | |
| Termination | Solder | |
| Fastening Type | Latch Lock/Eject Hooks, Short | |
| Features | Pick and Place Cap | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | - | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 45204-220230 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
45204-220230 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 45204-220230 is new and unused, you can buy 45204-220230 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 45204-220230.
