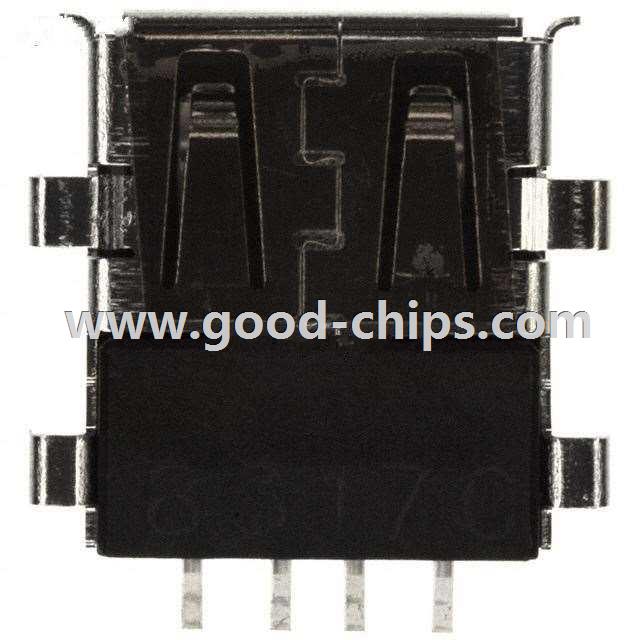

| Manufacturer Part Number: | 47504-0001 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | USB, DVI, HDMI Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | USB - A Receptacle Connector 4 Position Surface Mount, Right Angle, Horizontal |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 47504-0001 Datasheet |
| Internal Part Number | 898-47504-0001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 47504-0001.stp | |
| PCN Design/Specification | Multiple Devices 19/Apr/2011 | |
| Category | Connectors, Interconnects | |
| Family | USB, DVI, HDMI Connectors | |
| Manufacturer | Molex Connector Corporation | |
| Series | 47504 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Connector Type | USB - A | |
| Number of Contacts | 4 | |
| Gender | Receptacle | |
| Specifications | - | |
| Mounting Type | Surface Mount, Right Angle, Horizontal | |
| Features | Shielded | |
| Ingress Protection | - | |
| Standard Package | 300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 47504-0001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
47504-0001 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 47504-0001 is new and unused, you can buy 47504-0001 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 47504-0001.
