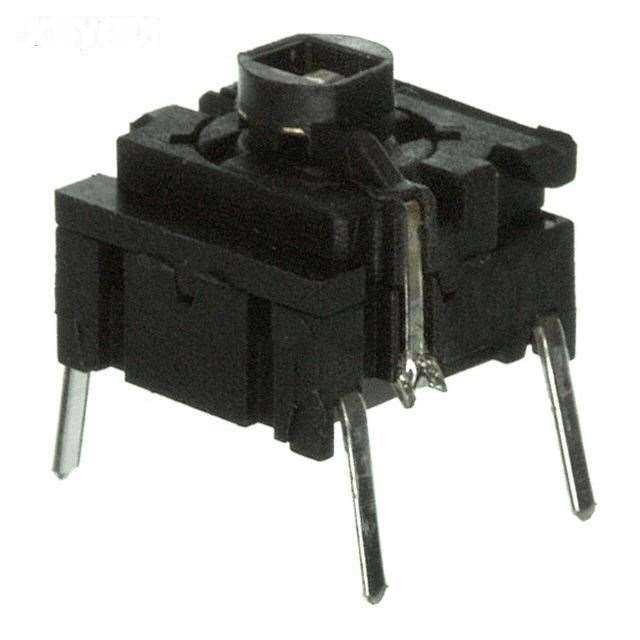

| Manufacturer Part Number: | 4ATH942 |
|---|---|
| Manufacturer: | MEC Switches |
| Product Category: | Tactile Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Tactile Switch SPST-NO Top Actuated Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 4ATH942 Datasheet |
| Internal Part Number | 898-4ATH942 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | MEC Switches | |
| Series | Multimec® 4 | |
| Packaging | Tube | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 24VDC | |
| Actuator Type | Plunger for Cap | |
| Mounting Type | Through Hole | |
| Actuator Height off PCB, from Pins | 8.40mm | |
| Actuator Orientation | Top Actuated | |
| Termination Style | PC Pin | |
| Outline | 10.10mm x 10.10mm | |
| Illumination | Illuminated | |
| Illumination Voltage (Nominal) | 2 VDC | |
| Illumination Type, Color | LED, Yellow | |
| Operating Force | 300gf | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | Sealed - Flux Protection | |
| Actuator Material | Polyphenylene Sulfide (PPS) | |
| Switch Travel | 1.00mm | |
| Mechanical Life | 10,000,000 Cycles | |
| Operating Temperature | -30°C ~ 85°C | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 4ATH942 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
4ATH942 is in stock for immediate shipping now. We are the distributor of MEC Switches all series components. The condition of 4ATH942 is new and unused, you can buy 4ATH942 MEC Switches with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 4ATH942.
