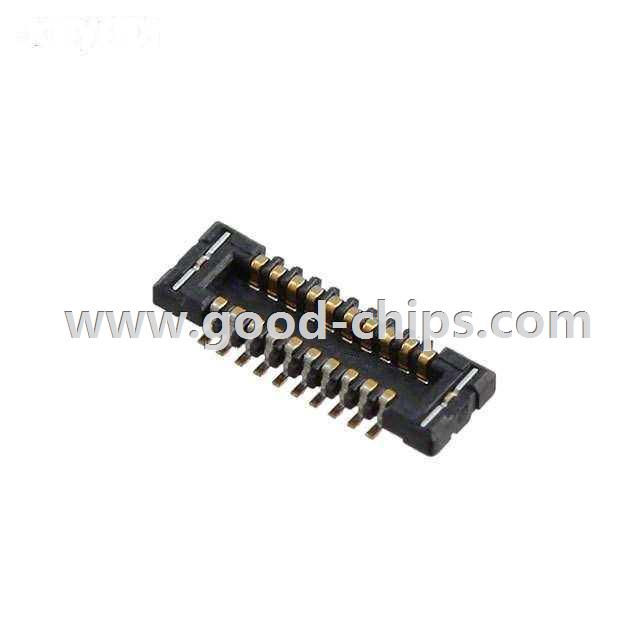

| Manufacturer Part Number: | 501594-2011 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 501594-2011 Datasheet |
| Internal Part Number | 898-501594-2011 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Microminiature Connectors Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 501594-2011 Cert of Compliance | |
| 3D Model | 501594-2011.stp | |
| PCN Assembly/Origin | Multiple Devices Production 24/Aug/2016 | |
| Online Catalog | SlimStack™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Molex Connector Corporation | |
| Series | SlimStack™ 501594 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 20 | |
| Pitch | 0.016" (0.40mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | 0.9mm | |
| Height Above Board | 0.028" (0.71mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 501594-2011 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
501594-2011 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 501594-2011 is new and unused, you can buy 501594-2011 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 501594-2011.
