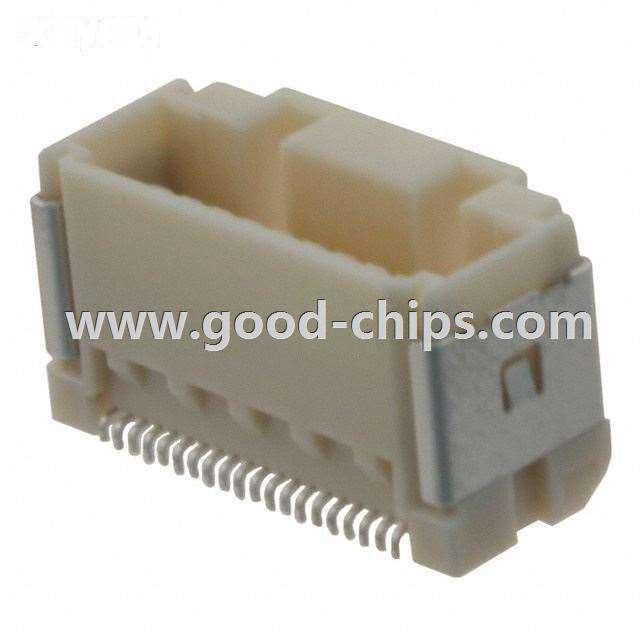

| Manufacturer Part Number: | 5020462070 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 9660 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5020462070 Datasheet |
| Internal Part Number | 898-5020462070 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 5020462070 Cert of Compliance | |
| Featured Product | Duo-Clasp™ Wire-to-Board Connector System | |
| 3D Model | 502046-2070.stp | |
| Online Catalog | Duo-Clasp™ 502046 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | Molex, LLC | |
| Series | Duo-Clasp™ 502046 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 20 | |
| Number of Positions Loaded | All | |
| Pitch | 0.049" (1.25mm) | |
| Number of Rows | 2 | |
| Row Spacing | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Color | Natural | |
| Standard Package | 650 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5020462070 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5020462070 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5020462070 is new and unused, you can buy 5020462070 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5020462070.
