| Manufacturer Part Number: | 5022250801 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9682 Pieces |
| Unit Price: | Quote by Email |

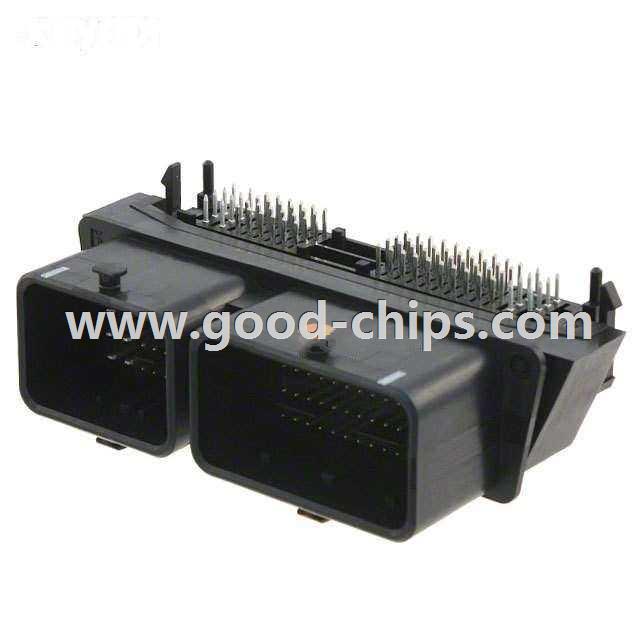

| Description: | 80 (48 + 32) Positions Header, Shrouded Connector Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5022250801 Datasheet |
| Internal Part Number | 898-5022250801 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Commercial Vehicle Connectors | |
| RoHS Information | 5022250801 Cert of Compliance | |
| Featured Product | CMC Hybrid Connectors | |
| PCN Packaging | 502225080107/May/2014 | |
| Online Catalog | CMC 502225 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | CMC 502225 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 80 (48 + 32) | |
| Number of Positions Loaded | All | |
| Pitch | - | |
| Number of Rows | 4 | |
| Row Spacing | - | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Latch Lock | |
| Features | Board Guide, Board Lock, 2 Ports | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | Black | |
| Standard Package | 64 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5022250801 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5022250801 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5022250801 is new and unused, you can buy 5022250801 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5022250801.
