| Manufacturer Part Number: | 5023861170 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 10210 Pieces |
| Unit Price: | Quote by Email |

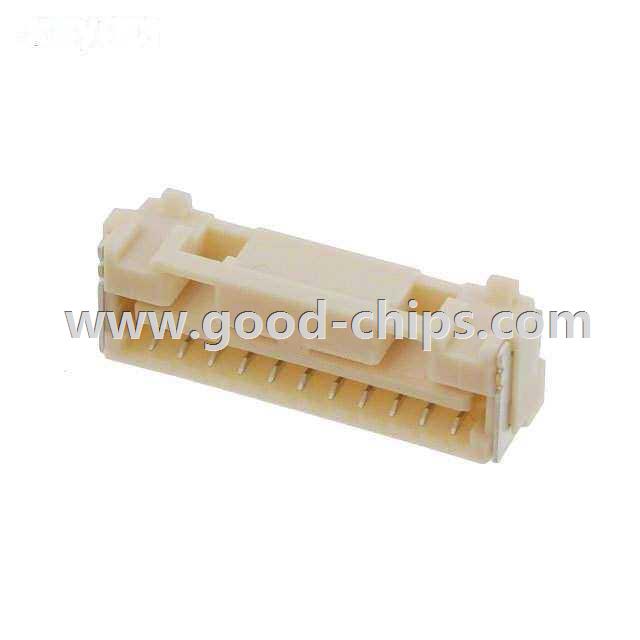

| Description: | 11 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5023861170 Datasheet |
| Internal Part Number | 898-5023861170 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 5023861170 Cert of Compliance | |
| Featured Product | CLIK-Mate™ Wire-to-Board Connectors | |
| 3D Model | 502386-1170.stp | |
| PCN Assembly/Origin | 502382,502386 Series 22/Jun/2015 | |
| Online Catalog | CLIK-Mate™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | Molex, LLC | |
| Series | CLIK-Mate™ 502386 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Forked | |
| Number of Positions | 11 | |
| Number of Positions Loaded | All | |
| Pitch | 0.049" (1.25mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | Latch Holder | |
| Features | Solder Retention | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 39µin (1.00µm) | |
| Color | Natural | |
| Standard Package | 1,200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5023861170 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5023861170 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5023861170 is new and unused, you can buy 5023861170 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5023861170.
