Manufacturer Part Number: | 502S47W222KF3E-****-SC |
---|---|
Manufacturer: | Johanson Dielectrics Inc. |
Product Category: | Ceramic Capacitors |
Available Quantity: | 9510 Pieces |
Unit Price: | Quote by Email |

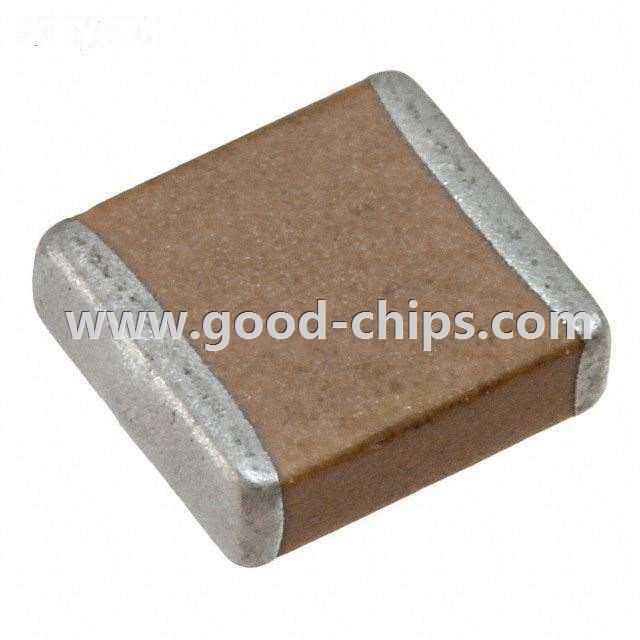

Description: | 2200pF 250VAC Ceramic Capacitor X7R 2220 (5750 Metric) 0.225" L x 0.200" W (5.72mm x 5.08mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 502S47W222KF3E-****-SC Datasheet |
Internal Part Number | 898-502S47W222KF3E-****-SC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | Johanson Dielectrics Inc. | |
Series | PolyTerm® | |
Packaging | Tape & Reel (TR) | |
Part Status | Quote Required | |
Capacitance | 2200pF | |
Tolerance | ±10% | |
Voltage - Rated | 250VAC | |
Temperature Coefficient | X7R | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | Safety, Boardflex Sensitive | |
Ratings | X1, Y2 | |
Package / Case | 2220 (5750 Metric) | |
Size / Dimension | 0.225" L x 0.200" W (5.72mm x 5.08mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.150" (3.81mm) | |
Lead Spacing | - | |
Features | Soft Termination | |
Lead Style | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 502S47W222KF3E-****-SC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
502S47W222KF3E-****-SC is in stock for immediate shipping now. We are the distributor of Johanson Dielectrics Inc. all series components. The condition of 502S47W222KF3E-****-SC is new and unused, you can buy 502S47W222KF3E-****-SC Johanson Dielectrics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 502S47W222KF3E-****-SC.
