Manufacturer Part Number: | 5034710200 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Solid State Lighting Connectors |
Available Quantity: | 25010 Pieces |
Unit Price: | Quote by Email |

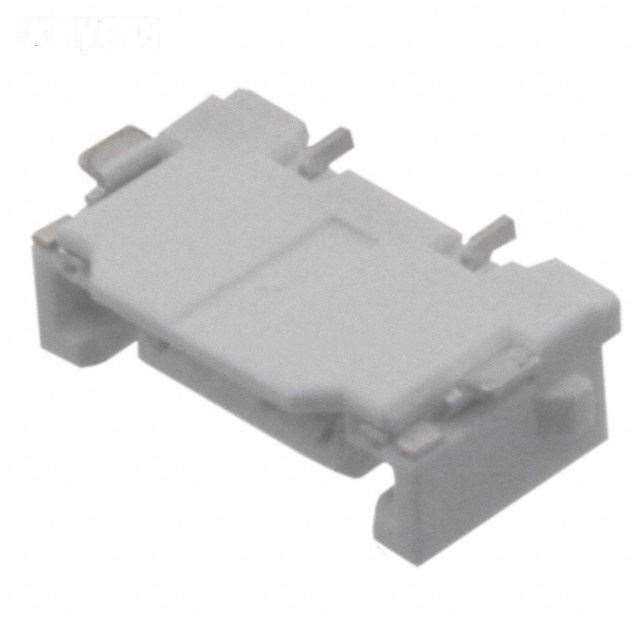

Description: | SSL Connector 2 Position Receptacle Board to Board or Cable 0.146" (3.70mm) Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 5034710200 Datasheet |
Internal Part Number | 898-5034710200 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 5034710200 Cert of Compliance | |
Design Resources | Lighting Product Selector | |
3D Model | 503471-0200.stp | |
Online Catalog | Flexi-Mate™ 503471 Series | |
Category | Connectors, Interconnects | |
Family | Solid State Lighting Connectors | |
Manufacturer | Molex, LLC | |
Series | Flexi-Mate™ 503471 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Style | Board to Board or Cable | |
Connector Type | Receptacle | |
Number of Positions | 2 | |
Mounting Type | Surface Mount, Right Angle | |
Termination | Solder | |
Pitch | 0.146" (3.70mm) | |
Fastening Type | Latch Lock | |
Features | Solder Retention | |
Housing Color | White | |
Wire Gauge | - | |
Contact Material | Phosphor Bronze | |
Contact Finish | Tin | |
Housing Material | Polyamide (PA), Nylon, Glass Filled | |
Operating Temperature | -40°C ~ 80°C | |
Voltage Rating | 500V | |
Current Rating | 2A | |
Ingress Protection | - | |
Mating Cycles | 15 | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 5034710200 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
5034710200 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5034710200 is new and unused, you can buy 5034710200 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5034710200.
