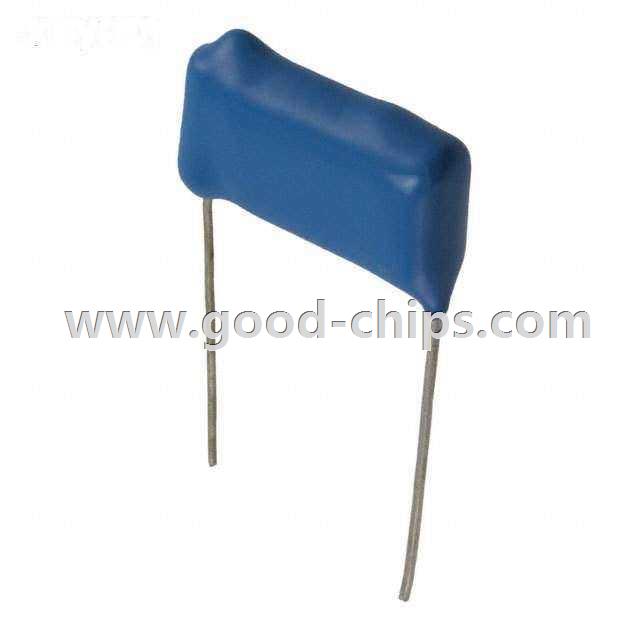

| Manufacturer Part Number: | 504M02QA100 |
|---|---|
| Manufacturer: | Cornell Dubilier Electronics (CDE) |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9294 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC EMI Filter 1st Order Low Pass 1 Channel R = 100 Ohms, C = 0.50µF Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 504M02QA100 Datasheet |
| Internal Part Number | 898-504M02QA100 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Quencharc® Arc Suppressor/Snubber Network | |
| Online Catalog | Quencharc® Series | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Cornell Dubilier Electronics (CDE) | |
| Series | Quencharc® | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 1st | |
| Technology | RC | |
| Number of Channels | 1 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | - | |
| Resistance - Channel (Ohms) | 100 | |
| Current | - | |
| Values | R = 100 Ohms, C = 0.50µF | |
| ESD Protection | No | |
| Operating Temperature | -55°C ~ 85°C | |
| Applications | General Purpose | |
| Voltage - Rated | 200V | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 1.079" L x 0.370" W (27.40mm x 9.40mm) | |
| Height | 0.892" (22.65mm) | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 504M02QA100 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
504M02QA100 is in stock for immediate shipping now. We are the distributor of Cornell Dubilier Electronics (CDE) all series components. The condition of 504M02QA100 is new and unused, you can buy 504M02QA100 Cornell Dubilier Electronics (CDE) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 504M02QA100.
