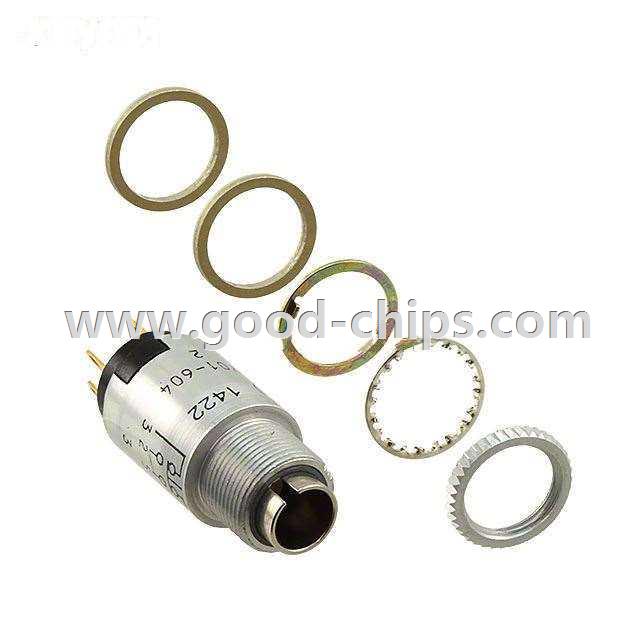

| Manufacturer Part Number: | 5131701604 |
|---|---|
| Manufacturer: | Dialight |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9370 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch DPST (1-NO, 1-NC) Standard, Illuminated Panel Mount, Rear |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5131701604 Datasheet |
| Internal Part Number | 898-5131701604 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 513 Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | Dialight | |
| Series | 513 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard, Illuminated | |
| Circuit | DPST (1-NO, 1-NC) | |
| Switch Function | On-Mom, Off-Mom | |
| Current Rating | 5A (AC/DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Plunger for Cap | |
| Color - Actuator/Cap | - | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Rear | |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | Circular - 12.70mm Dia | |
| Operating Temperature | - | |
| Mechanical Life | 50,000 Cycles | |
| Electrical Life | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5131701604 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5131701604 is in stock for immediate shipping now. We are the distributor of Dialight all series components. The condition of 5131701604 is new and unused, you can buy 5131701604 Dialight with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5131701604.
