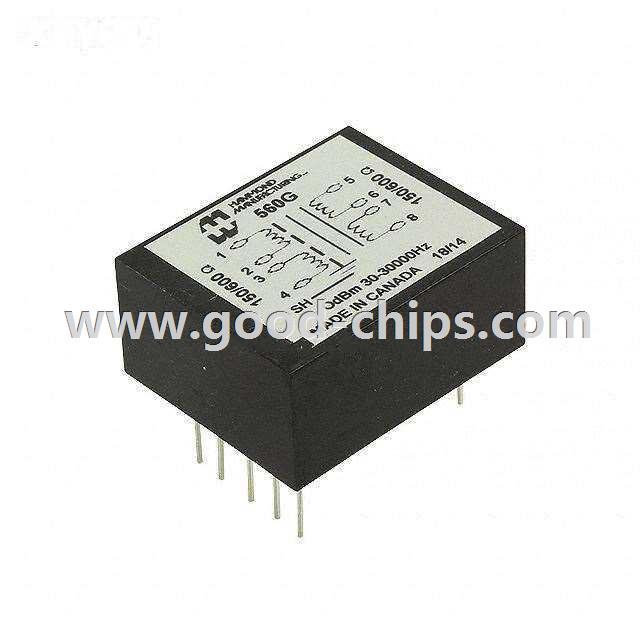

| Manufacturer Part Number: | 560G |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Audio Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANSF AUDIO 150/600 150/600 IMP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 560G Datasheet |
| Internal Part Number | 898-560G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Transformers | |
| Family | Audio Transformers | |
| Manufacturer | Hammond Manufacturing | |
| Series | 560 | |
| Part Status | Active | |
| Transformer Type | Broadcast Quality | |
| Current | - | |
| Impedance | 150/600 Primary, 150/600 Secondary | |
| Insertion Loss | 1dB Typ. | |
| Mounting Type | Through Hole | |
| Size / Dimension | 33.78mm L x 41.66mm W | |
| Height - Seated (Max) | 21.59mm | |
| Termination Style | PC Pin | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 560G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
560G is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of 560G is new and unused, you can buy 560G Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 560G.
