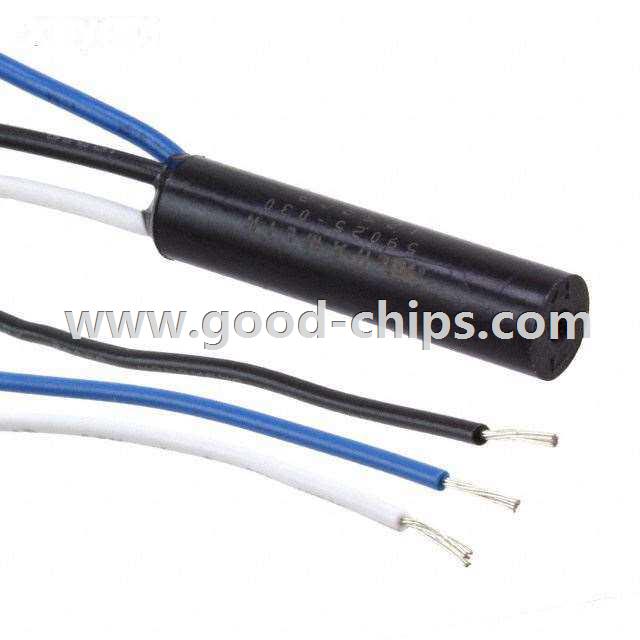

| Manufacturer Part Number: | 59025-030 |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Magnetic Sensors - Position, Proximity, Speed (Modules) |
| Available Quantity: | 15809 Pieces |
| Unit Price: | Quote by Email |
| Description: | Magnetic Reed Switch Magnet SPDT Wire Leads Probe |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 59025-030 Datasheet |
| Internal Part Number | 898-59025-030 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Ampere*turn vs. mT & Gauss Appl Note Handling of Reed Sensors, Relays, Switches Appl Note Reed Switch, Sensor Activation Appl Note | |
| RoHS Information | RoHS Compliance Survey | |
| Online Catalog | 59025 Series | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Position, Proximity, Speed (Modules) | |
| Manufacturer | Littelfuse Inc. | |
| Series | 59025 | |
| Part Status | Active | |
| Output Type | SPDT | |
| Type | Reed Switch | |
| Actuator Material | Magnet | |
| Termination Style | Wire Leads | |
| Frequency | - | |
| Voltage - Supply | - | |
| Must Operate | 3.81mm | |
| Must Release | 20.32mm | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Package / Case | Probe | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 59025-030 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
59025-030 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of 59025-030 is new and unused, you can buy 59025-030 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 59025-030.
