| Manufacturer Part Number: | 5962-8761203VDA |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Logic - Gates and Inverters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | NOR Gate IC 4 Channel 14-CFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5962-8761203VDA Datasheet |
| Internal Part Number | 898-5962-8761203VDA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Logic Type | NOR Gate | |
| Number of Circuits | 4 | |
| Number of Inputs | 2 | |
| Features | - | |
| Voltage - Supply | 1.5 V ~ 5.5 V | |
| Current - Quiescent (Max) | 4µA | |
| Current - Output High, Low | 24mA, 24mA | |
| Logic Level - Low | 0.3 V ~ 1.65 V | |
| Logic Level - High | 1.2 V ~ 3.85 V | |
| Max Propagation Delay @ V, Max CL | 11.5ns @ 5V, 50pF | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Through Hole | |

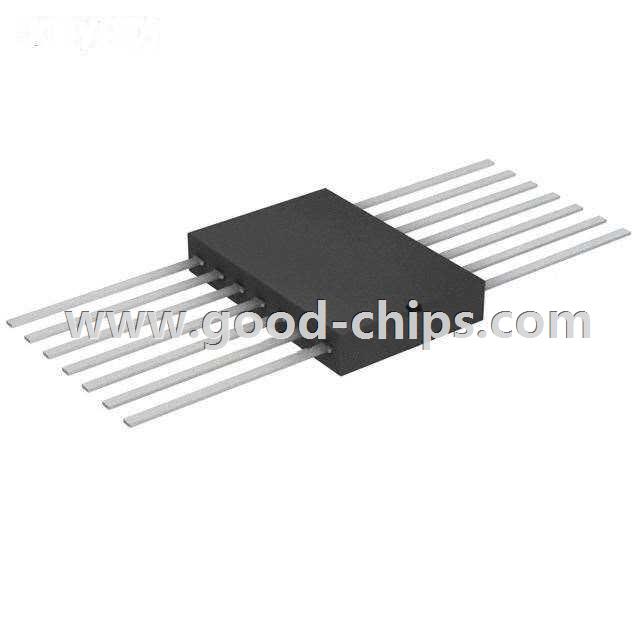

| Supplier Device Package | 14-CFP | |
| Package / Case | 14-CFP | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5962-8761203VDA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5962-8761203VDA is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of 5962-8761203VDA is new and unused, you can buy 5962-8761203VDA Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5962-8761203VDA.
