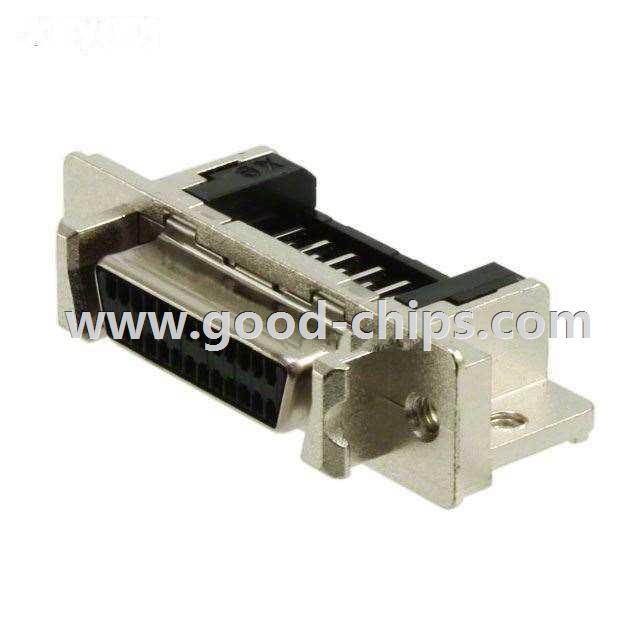

60010265132

60010265132
Manufacturer Part Number:60010265132
Manufacturer:
Product Category:D-Sub Connectors
Available Quantity:9060 Pieces
Unit Price:Quote by Email
Description:26 Position D-Type Receptacle, Female Sockets Connector, Through Hole, Right Angle Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 60010265132 Datasheet
60010265132´s Parameters
Internal Part Number898-60010265132
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model60010265132.stp
60010265132.igs
60010265132.wrl
PCN Obsolescence/ EOLMultiple Devices07/Jan/2016
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
ManufacturerHarting
Serieshar-mik®
PackagingBulk
Part StatusObsolete
Connector StyleD-Type
Connector TypeReceptacle, Female Sockets
Number of Positions26
Number of Rows2
Shell Size, Connector Layout0.050 Pitch x 0.100 Row to Row
Contact TypeSignal
Mounting TypeThrough Hole, Right Angle
Flange FeatureHousing/Shell (M2.5); Latchblocks
TerminationSolder
Features-
Shell Material, Finish-
Contact Finish-
Contact Finish Thickness-
Ingress Protection-
Operating Temperature-55°C ~ 105°C
Voltage Rating240V
Current Rating1A
Housing MaterialThermoplastic, Glass Filled
Color-
Standard Package 50
Weight0.001 KG
ApplicationEmail for details
Replacement Part60010265132
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

60010265132 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 60010265132 is new and unused, you can buy 60010265132 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 60010265132.
