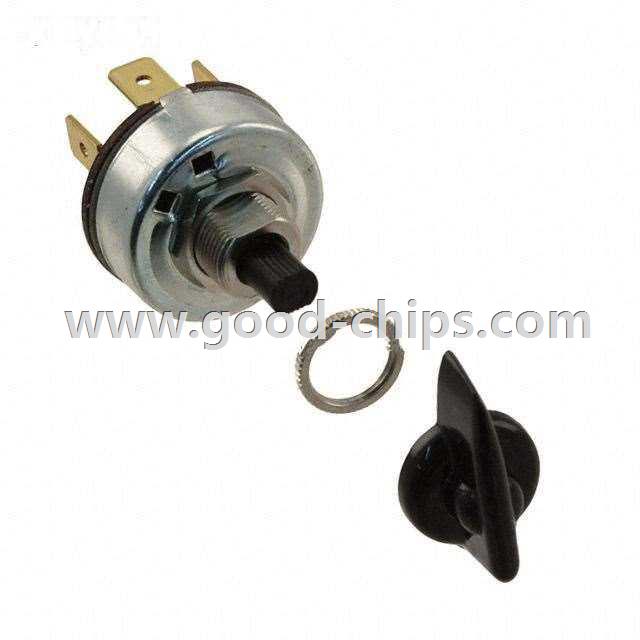

| Manufacturer Part Number: | 700-A-BL |
|---|---|
| Manufacturer: | Carling Technologies |
| Product Category: | Selector Switches |
| Available Quantity: | 9158 Pieces |
| Unit Price: | Quote by Email |
| Description: | Selector Switch 4 Position SP3T 4A (AC), 1A (DC) 125V Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 700-A-BL Datasheet |
| Internal Part Number | 898-700-A-BL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 700 Series | |
| Category | Switches | |
| Family | Selector Switches | |
| Manufacturer | Carling Technologies | |
| Series | 700 | |
| Part Status | Active | |
| Type | Standard | |
| Circuit | SP3T | |
| Number of Positions | 4 | |
| Switch Function | Off-On-On-On | |
| Current Rating | 4A (AC), 1A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 125V | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Panel Cutout Dimensions | Circular - 11.88mm Dia | |
| Ingress Protection | - | |
| Features | Bezel - Round, Long Lever | |
| Depth Behind Flange | 23.94mm | |
| Operating Temperature | - | |
| Mechanical Life | - | |
| Electrical Life | - | |
| Approvals | CSA, UL | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 700-A-BL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
700-A-BL is in stock for immediate shipping now. We are the distributor of Carling Technologies all series components. The condition of 700-A-BL is new and unused, you can buy 700-A-BL Carling Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 700-A-BL.
