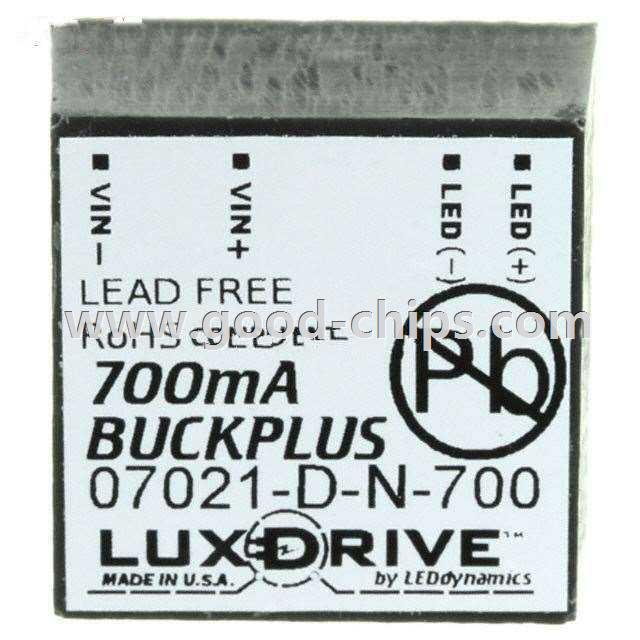

Manufacturer Part Number: | 7021-D-N-700 |
---|---|
Manufacturer: | LEDdynamics Inc. |
Product Category: | LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 700mA 32V (Max) Constant Current LED Driver Buck Topology 1 Output |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 7021-D-N-700 Datasheet |
Internal Part Number | 898-7021-D-N-700 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Category | Power Supplies - Board Mount | |
Family | LED Drivers | |
Manufacturer | LEDdynamics Inc. | |
Series | BuckPlus™ 7021 | |
Part Status | Obsolete | |
Type | Constant Current | |
Topology | Buck | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 5V | |
Voltage - Input (Max) | 32V | |
Voltage - Output | 32V (Max) | |
Current - Output (Max) | 700mA | |
Power (Watts) | 22W | |
Dimming | - | |
Features | Remote On/Off, SCP | |
Operating Temperature | -40°C ~ 80°C | |
Efficiency | 95% | |
Mounting Type | Through Hole | |
Package / Case | 7-SIP Module | |
Size / Dimension | 0.83" L x 0.83" W x 0.43" H (21.1mm x 21.1mm x 10.9mm) | |
Packaging | Bulk | |
Approvals | - | |
Weight | 0.001 KG | |
Standard Package | 25 | |
Application | Email for details | |
Replacement Part | 7021-D-N-700 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
7021-D-N-700 is in stock for immediate shipping now. We are the distributor of LEDdynamics Inc. all series components. The condition of 7021-D-N-700 is new and unused, you can buy 7021-D-N-700 LEDdynamics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7021-D-N-700.
