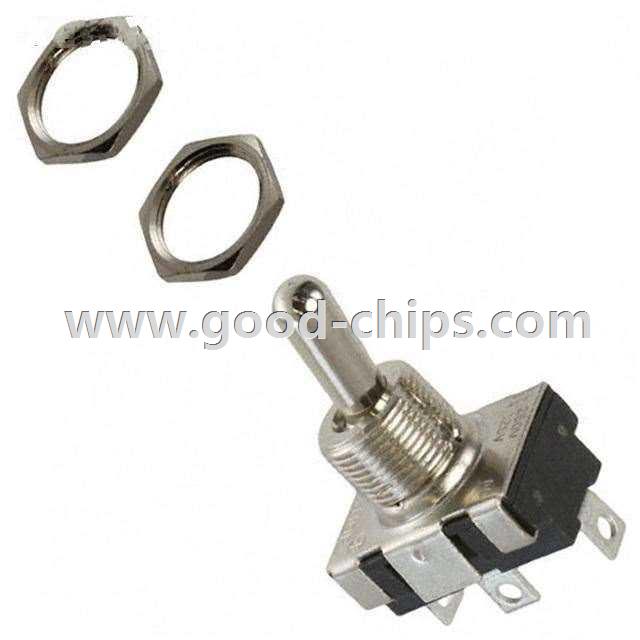

| Manufacturer Part Number: | 7101D |
|---|---|
| Manufacturer: | Electroswitch |
| Product Category: | Toggle Switches |
| Available Quantity: | 9111 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch SPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 7101D Datasheet |
| Internal Part Number | 898-7101D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 7100 and 7200 Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Electroswitch | |
| Series | 7100 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-On | |
| Current Rating | 6A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Standard Round | |
| Actuator Length | 14.27mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Panel Cutout Dimensions | - | |
| Bushing Thread | 15/32-32 | |
| Ingress Protection | - | |
| Features | - | |
| Actuator Material | - | |
| Electrical Life | 10,000 Cycles | |
| Operating Temperature | -10°C ~ 65°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 7101D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
7101D is in stock for immediate shipping now. We are the distributor of Electroswitch all series components. The condition of 7101D is new and unused, you can buy 7101D Electroswitch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 7101D.
