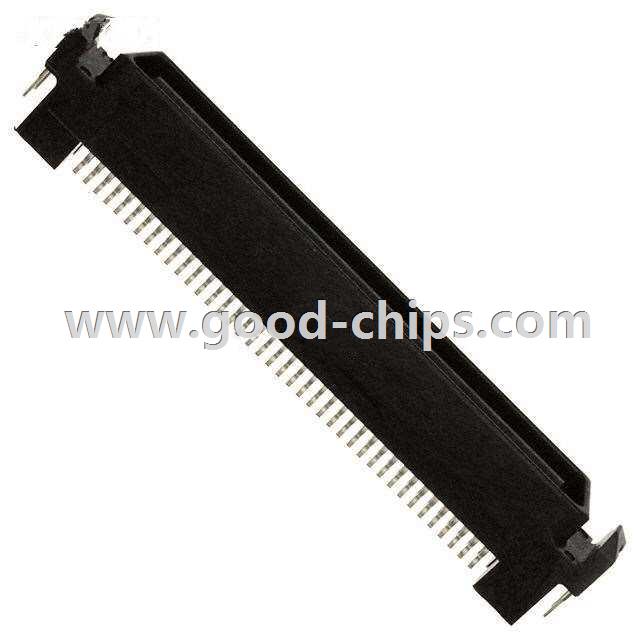

| Manufacturer Part Number: | 71292-203LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | D-Shaped Connectors - Centronics |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 80 Position Plug Connector SCA-2 Board Edge, Straddle Mount Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 71292-203LF Datasheet |
| Internal Part Number | 898-71292-203LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Storage Drive Connectors Overview | |
| Category | Connectors, Interconnects | |
| Family | D-Shaped Connectors - Centronics | |
| Manufacturer | Amphenol FCI | |
| Series | 71292 | |
| Part Status | Active | |
| Connector Style | Center Strip Contacts | |
| Connector Type | Plug | |
| Number of Positions | 80 | |
| Number of Rows | 2 | |
| Mounting Type | Board Edge, Straddle Mount | |
| Termination | Solder | |
| Flange Feature | - | |
| Type | SCA-2 | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Standard Package | 780 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 71292-203LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
71292-203LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 71292-203LF is new and unused, you can buy 71292-203LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 71292-203LF.
