Manufacturer Part Number: | 742792091 |
---|---|
Manufacturer: | Wurth Electronics Inc |
Product Category: | Ferrite Beads and Chips |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

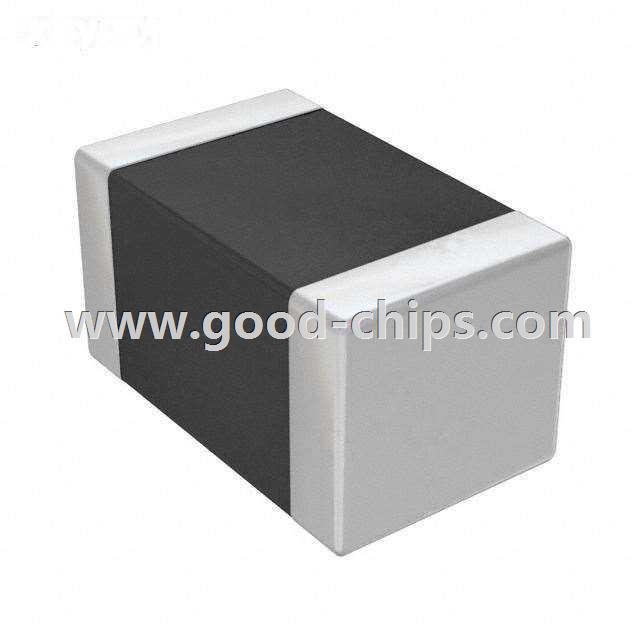

Description: | 1.5 kOhm Impedance Ferrite Bead 0805 (2012 Metric) Surface Mount Signal Line 200mA 1 Lines 550 mOhm Max DCR -55°C ~ 125°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 742792091 Datasheet |
Internal Part Number | 898-742792091 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Spice Model Library WE-CBF 0805 S-Parameters | |
3D Model | CBF 0805.igs CBF 0805.stp | |
Category | Filters | |
Family | Ferrite Beads and Chips | |
Manufacturer | Wurth Electronics Inc | |
Series | WE-CBF | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | Signal Line | |
Number of Lines | 1 | |
Impedance @ Frequency | 1.5 kOhm @ 100MHz | |
Current Rating (Max) | 200mA | |
DC Resistance (DCR) (Max) | 550 mOhm | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Package / Case | 0805 (2012 Metric) | |
Mounting Type | Surface Mount | |
Height (Max) | 0.043" (1.10mm) | |
Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 742792091 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
742792091 is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 742792091 is new and unused, you can buy 742792091 Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 742792091.
