Manufacturer Part Number: | 74ACT158PC |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Logic - Signal Switches, Multiplexers, Decoders |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Multiplexer 4 x 2:1 16-SOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 74ACT158PC Datasheet |
Internal Part Number | 898-74ACT158PC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Signal Switches, Multiplexers, Decoders | |
Manufacturer | Fairchild Semiconductor | |
Series | 74ACT | |
Packaging | Tube | |
Part Status | Obsolete | |
Type | Multiplexer | |
Circuit | 4 x 2:1 | |
Independent Circuits | 1 | |
Current - Output High, Low | 24mA, 24mA | |
Voltage Supply Source | Single Supply | |
Voltage - Supply | 4.5 V ~ 5.5 V | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

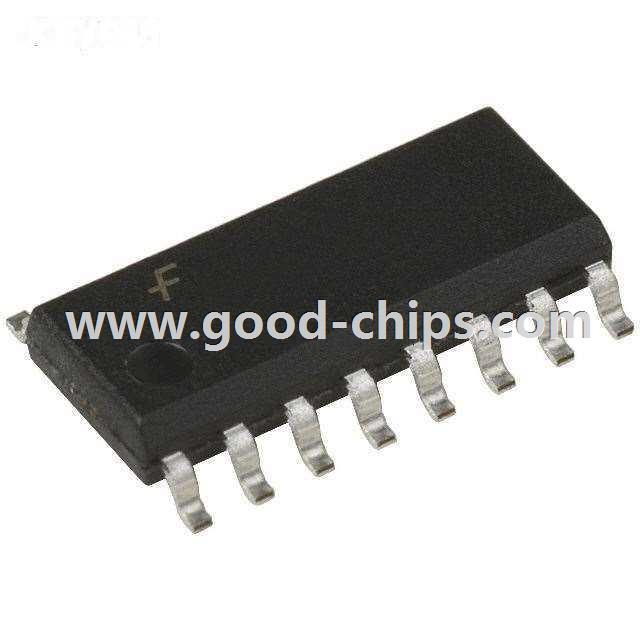

Package / Case | 16-SOIC (0.209", 5.30mm Width) | |
Supplier Device Package | 16-SOP | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 74ACT158PC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
74ACT158PC is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of 74ACT158PC is new and unused, you can buy 74ACT158PC Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 74ACT158PC.
