| Manufacturer Part Number: | 78438335220 |
|---|---|
| Manufacturer: | Wurth Electronics Inc |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

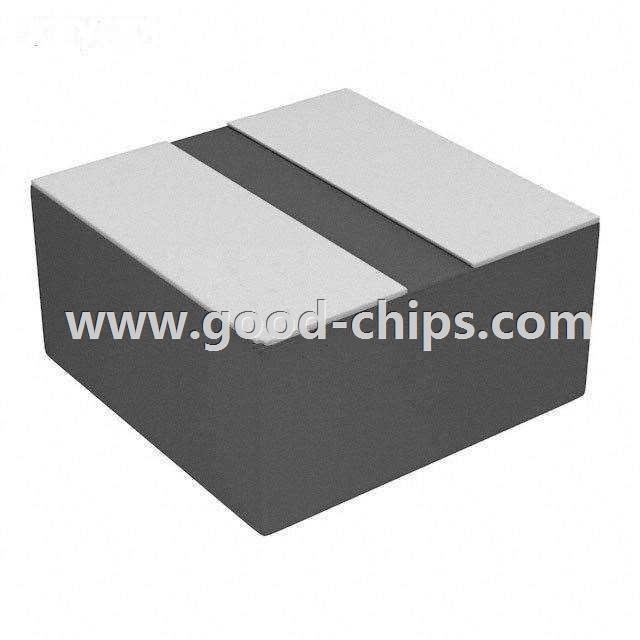

| Description: | 22µH Shielded Wirewound Inductor 600mA 1.04 Ohm Max 1212 (3030 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 78438335220 Datasheet |
| Internal Part Number | 898-78438335220 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wurth - Q+ Products | |
| PCN Packaging | WE-MAIA 784383yyy 01/Sep/2016 | |
| Online Catalog | WE-MAIA Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Wurth Electronics Inc | |
| Series | WE-MAIA | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Iron | |
| Inductance | 22µH | |
| Tolerance | ±30% | |
| Current Rating | 600mA | |
| Current - Saturation | 1.6A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 1.04 Ohm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 12MHz | |
| Ratings | AEC-Q200 | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1212 (3030 Metric) | |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | |
| Height - Seated (Max) | 0.059" (1.50mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 78438335220 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
78438335220 is in stock for immediate shipping now. We are the distributor of Wurth Electronics Inc all series components. The condition of 78438335220 is new and unused, you can buy 78438335220 Wurth Electronics Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 78438335220.
