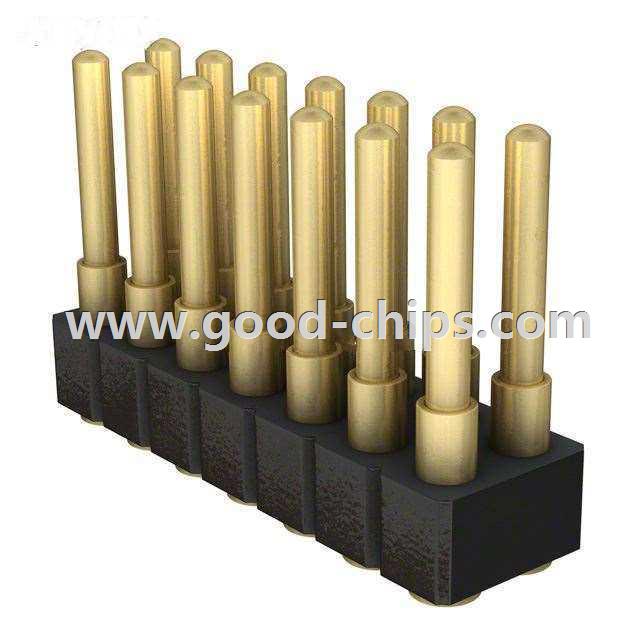

Manufacturer Part Number: | 814-22-014-30-005101 |
---|---|
Manufacturer: | Mill-Max Manufacturing Corp. |
Product Category: | Rectangular Connectors - Spring Loaded |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 14 Position Spring Piston Connector Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 814-22-014-30-005101 Datasheet |
Internal Part Number | 898-814-22-014-30-005101 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Spring-Loaded Connectors | |
Featured Product | Spring-Loaded Connectors | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Spring Loaded | |
Manufacturer | Mill-Max Manufacturing Corp. | |
Series | 814 | |
Packaging | Tube | |
Part Status | Discontinued | |
Connector Type | Piston | |
Number of Contacts | 14 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Mounting Type | Surface Mount | |
Material | Copper Alloy | |
Contact Finish | Gold | |
Contact Finish Thickness | 20µin (0.51µm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 814-22-014-30-005101 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
814-22-014-30-005101 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 814-22-014-30-005101 is new and unused, you can buy 814-22-014-30-005101 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 814-22-014-30-005101.
