| Manufacturer Part Number: | 814-22-048-30-009101 |
|---|---|
| Manufacturer: | Mill-Max Manufacturing Corp. |
| Product Category: | Rectangular Connectors - Spring Loaded |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

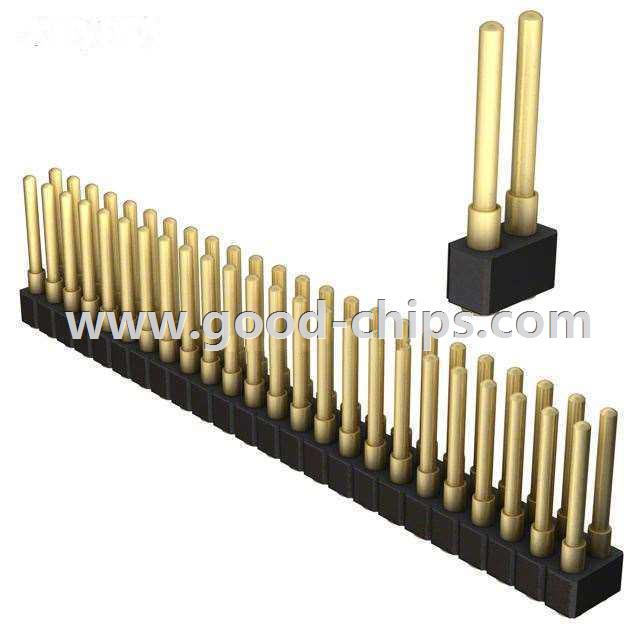

| Description: | 48 Position Spring Piston Connector Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 814-22-048-30-009101 Datasheet |
| Internal Part Number | 898-814-22-048-30-009101 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Spring-Loaded Connectors | |
| Featured Product | Spring-Loaded Connectors | |
| Online Catalog | 812 and 814 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Spring Loaded | |
| Manufacturer | Mill-Max Manufacturing Corp. | |
| Series | 814 | |
| Packaging | Tube | |
| Part Status | Active | |
| Connector Type | Piston | |
| Number of Contacts | 48 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Mounting Type | Surface Mount | |
| Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 20µin (0.51µm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 814-22-048-30-009101 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
814-22-048-30-009101 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 814-22-048-30-009101 is new and unused, you can buy 814-22-048-30-009101 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 814-22-048-30-009101.
