| Manufacturer Part Number: | 82223C |
|---|---|
| Manufacturer: | Murata Power Solutions Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 14010 Pieces |
| Unit Price: | Quote by Email |

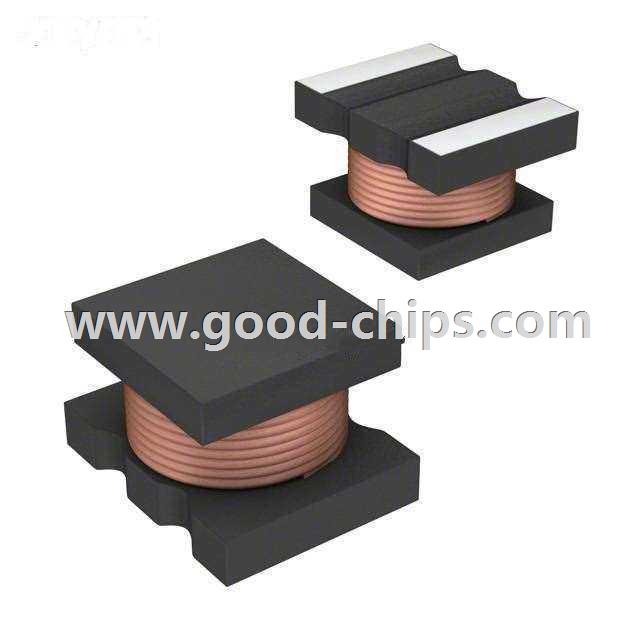

| Description: | 22µH Unshielded Wirewound Inductor 320mA 920 mOhm Max 1210 (3225 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 82223C Datasheet |
| Internal Part Number | 898-82223C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetics Products Offering | |
| Online Catalog | 8200 Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Murata Power Solutions Inc. | |
| Series | 8200 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | - | |
| Inductance | 22µH | |
| Tolerance | ±10% | |
| Current Rating | 320mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 920 mOhm Max | |
| Q @ Freq | 35 @ 1MHz | |
| Frequency - Self Resonant | 25MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 10kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1210 (3225 Metric) | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height - Seated (Max) | 0.092" (2.30mm) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 82223C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
82223C is in stock for immediate shipping now. We are the distributor of Murata Power Solutions Inc. all series components. The condition of 82223C is new and unused, you can buy 82223C Murata Power Solutions Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 82223C.
