Manufacturer Part Number: | 8228 |
---|---|
Manufacturer: | Keystone Electronics |
Product Category: | Terminals - Spade Connectors |
Available Quantity: | 10004 Pieces |
Unit Price: | Quote by Email |

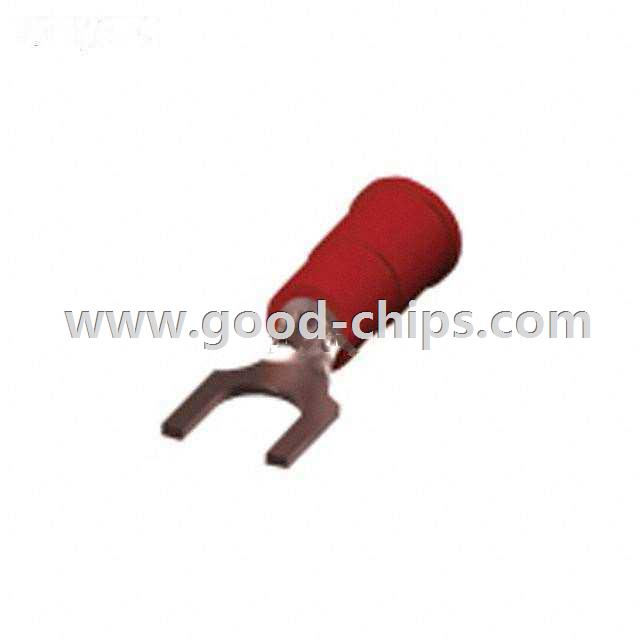

Description: | Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 8228 Datasheet |
Internal Part Number | 898-8228 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Spade Terminals | |
Category | Connectors, Interconnects | |
Family | Terminals - Spade Connectors | |
Manufacturer | Keystone Electronics | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Standard | |
Stud/Tab Size | 8 Stud | |
Width - Outer Edges | 0.300" (7.62mm) | |
Length - Overall | 0.850" (21.59mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 18-22 AWG | |
Insulation | Insulated | |
Features | - | |
Color | Red | |
Contact Finish | Tin | |
Contact Material | Copper, ETP | |
Insulation Diameter | 0.145" (3.68mm) | |
Material - Insulation | Vinyl | |
Length - Ring Center to Termination | 0.250" (6.35mm) | |
Length - Termination | 0.250" (6.35mm) | |
Tongue Inside Opening | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 8228 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
8228 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 8228 is new and unused, you can buy 8228 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8228.
