| Manufacturer Part Number: | 8250-6005 |
|---|---|
| Manufacturer: | 3M |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9515 Pieces |
| Unit Price: | Quote by Email |

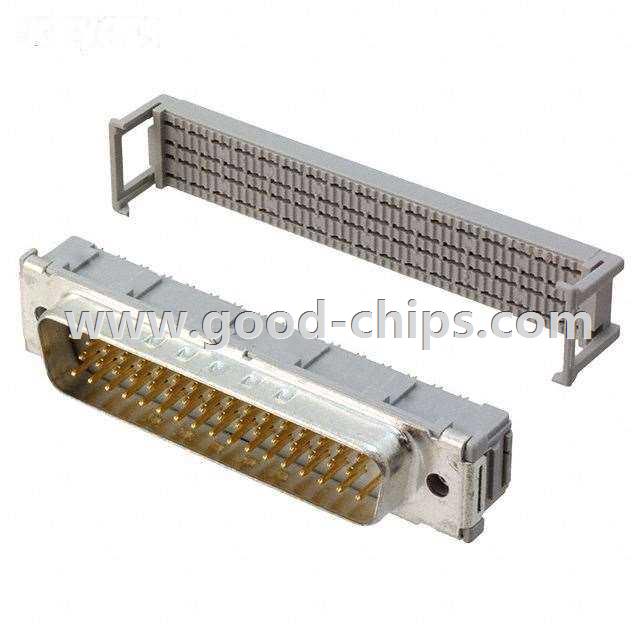

| Description: | 50 Position D-Sub Plug, Male Pins Connector, Panel Mount IDC, Ribbon Cable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 8250-6005 Datasheet |
| Internal Part Number | 898-8250-6005 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Input/Output Connector Systems Primer | |
| Featured Product | Ribbon Cable Assemblies 8200 and 8300 DSub Socket and Plug Series | |
| 3D Model | 8250-600X.igs 8250-600X.x_t 8250-600X.stp | |
| Online Catalog | 8200 Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | 3M | |
| Series | 8250 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 50 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 5 (DD, D) | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | IDC, Ribbon Cable | |
| Features | Feed Through, Grounding Indents | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 1A | |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | |
| Color | Gray | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 8250-6005 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
8250-6005 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 8250-6005 is new and unused, you can buy 8250-6005 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8250-6005.
