Manufacturer Part Number: | 8444-21B1-RK-TR |
---|---|
Manufacturer: | 3M |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 9370 Pieces |
Unit Price: | Quote by Email |

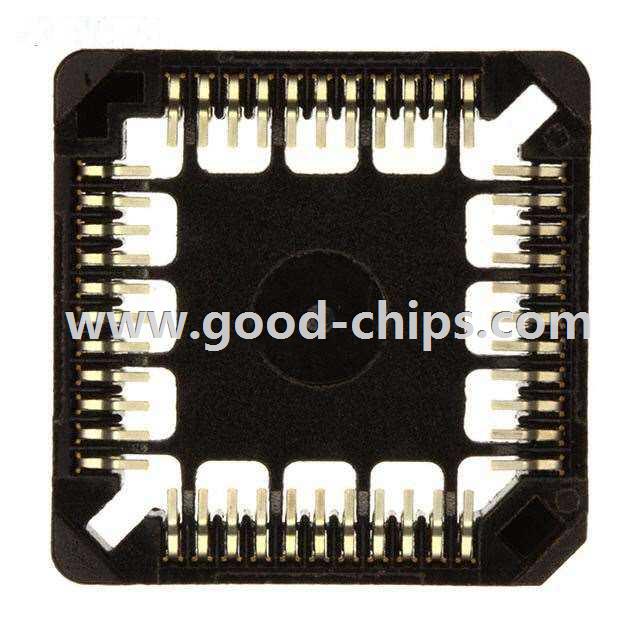

Description: | CONN SOCKET PLCC 44POS TIN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 8444-21B1-RK-TR Datasheet |
Internal Part Number | 898-8444-21B1-RK-TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 8444-21B1-XX-XX.stp 8444-21B1-XX-XX.igs 8444-21B1-XX-XX.x_t | |
Online Catalog | 8400 Series | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors | |
Manufacturer | 3M | |
Series | 8400 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | PLCC | |
Number of Positions or Pins (Grid) | 44 (4 x 11) | |
Pitch - Mating | 0.050" (1.27mm) | |
Contact Finish - Mating | Tin | |
Contact Finish Thickness - Mating | 160µin (4.06µm) | |
Contact Material - Mating | Copper Alloy | |
Mounting Type | Surface Mount | |
Features | Closed Frame | |
Termination | Solder | |
Pitch - Post | 0.050" (1.27mm) | |
Contact Finish - Post | Tin | |
Contact Finish Thickness - Post | 160µin (4.06µm) | |
Contact Material - Post | Copper Alloy | |
Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
Operating Temperature | -40°C ~ 105°C | |
Termination Post Length | 0.132" (3.35mm) | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 1A | |
Contact Resistance | - | |
Standard Package | 360 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 8444-21B1-RK-TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
8444-21B1-RK-TR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 8444-21B1-RK-TR is new and unused, you can buy 8444-21B1-RK-TR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8444-21B1-RK-TR.
