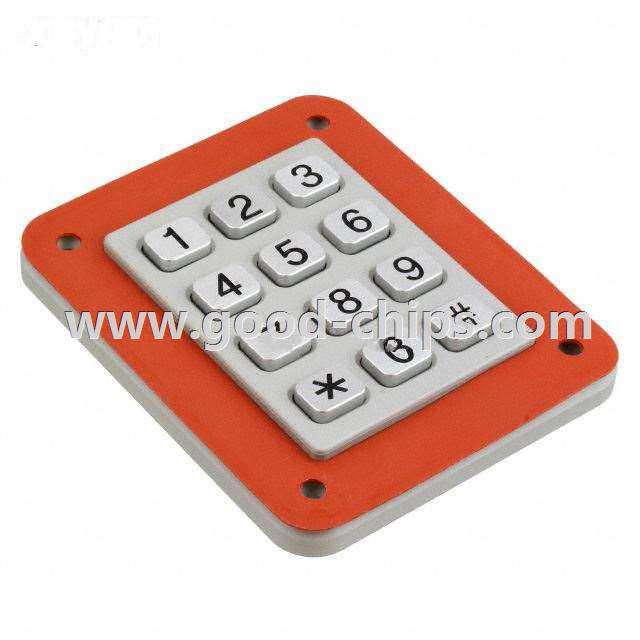

| Manufacturer Part Number: | 84R-AB2-112-PD |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | Keypad Switches |
| Available Quantity: | 9024 Pieces |
| Unit Price: | Quote by Email |
| Description: | Keypad Switch 12 Metal Keys Snap Dome Contacts Matrix Output Non-Illuminated 0.01A @ 24VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 84R-AB2-112-PD Datasheet |
| Internal Part Number | 898-84R-AB2-112-PD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | Compliance Status by Product Type | |
| Online Catalog | 84R Series | |
| Category | Switches | |
| Family | Keypad Switches | |
| Manufacturer | Grayhill Inc. | |
| Series | 84R | |
| Part Status | Active | |
| Switch Type | Snap Dome | |
| Number of Keys | 12 | |
| Matrix (Columns x Rows) | 3 x 4 | |
| Illumination | Non-Illuminated | |
| Legend Type | Fixed | |
| Key Type | Metal | |
| Output Type | Matrix | |
| Legend | Telephone Format | |
| Legend Color | Black | |
| Key Color | Silver | |
| Mounting Type | Panel Mount, Front or Rear | |
| Termination Style | Pin Header | |
| Panel Cutout Dimensions | Rectangular - 83.57mm x 64.52mm | |
| Operating Temperature | -55°C ~ 85°C | |
| Ingress Protection | - | |
| Illumination Voltage (Nominal) | - | |
| Contact Rating @ Voltage | 0.01A @ 24VDC | |
| Features | Vandal Resistant | |
| Operational Life | 3,000,000 Cycles | |
| Approvals | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 84R-AB2-112-PD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
84R-AB2-112-PD is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 84R-AB2-112-PD is new and unused, you can buy 84R-AB2-112-PD Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 84R-AB2-112-PD.
