| Manufacturer Part Number: | 866B509 |
|---|---|
| Manufacturer: | Winchester Electronics |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9247 Pieces |
| Unit Price: | Quote by Email |

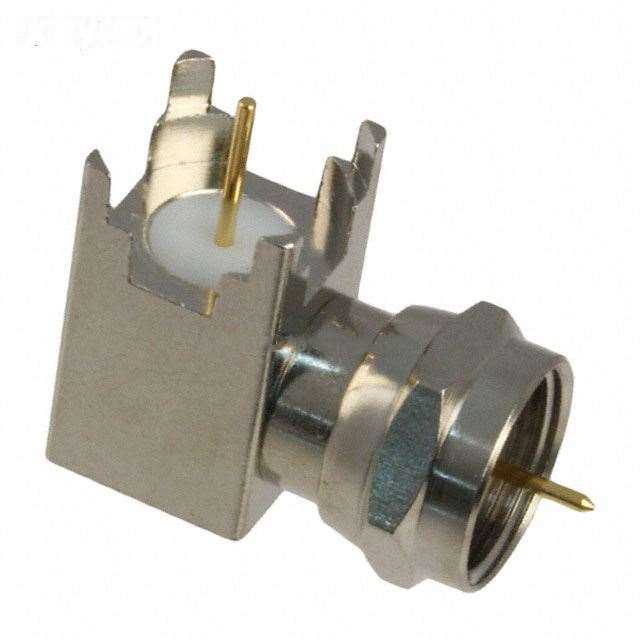

| Description: | F Type Connector Plug, Male Pin Non-Constant Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 866B509 Datasheet |
| Internal Part Number | 898-866B509 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | F Type, Eliminator™ Series | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | Winchester Electronics | |
| Series | Eliminator™ | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | F Type | |
| Connector Type | Plug, Male Pin | |
| Contact Termination | Solder | |
| Shield Termination | Solder | |
| Impedance | Non-Constant | |
| Mounting Type | Through Hole, Right Angle | |
| Cable Group | - | |
| Fastening Type | Threaded | |
| Frequency - Max | 500MHz | |
| Features | - | |
| Housing Color | Silver | |
| Ingress Protection | - | |
| Body Material | Brass | |
| Body Finish | Nickel | |
| Center Contact Material | Brass | |
| Center Contact Plating | Nickel | |
| Dielectric Material | Polypropylene (PP) | |
| Voltage Rating | 500V | |
| Operating Temperature | -40°C ~ 65°C | |
| Standard Package | 80 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 866B509 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
866B509 is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of 866B509 is new and unused, you can buy 866B509 Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 866B509.
