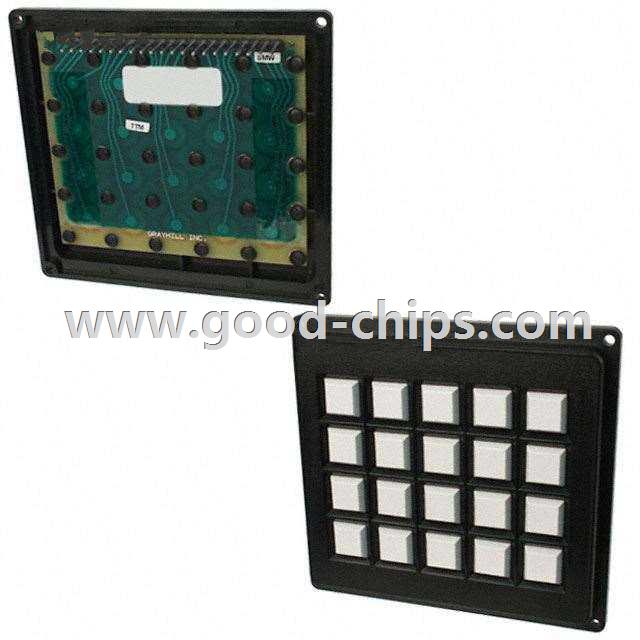

| Manufacturer Part Number: | 88JC2 |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | Keypad Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Keypad Switch 20 Polyester Overlay Keys Snap Dome Contacts Common Bus Output Non-Illuminated 0.01A @ 24VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 88JC2 Datasheet |
| Internal Part Number | 898-88JC2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Keypads | |
| RoHS Information | Compliance Status by Product Type | |
| Category | Switches | |
| Family | Keypad Switches | |
| Manufacturer | Grayhill Inc. | |
| Series | 88 | |
| Part Status | Active | |
| Switch Type | Snap Dome | |
| Number of Keys | 20 | |
| Matrix (Columns x Rows) | 5 x 4 | |
| Illumination | Non-Illuminated | |
| Legend Type | Interchangeable | |
| Key Type | Polyester Overlay | |
| Output Type | Common Bus | |
| Legend | Customizable (Sold Separate) | |
| Legend Color | - | |
| Key Color | White | |
| Mounting Type | Panel Mount, Front or Rear | |
| Termination Style | Pin Header | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -40°C ~ 80°C | |
| Ingress Protection | IP42 | |
| Illumination Voltage (Nominal) | - | |
| Contact Rating @ Voltage | 0.01A @ 24VDC | |
| Features | - | |
| Operational Life | 3,000,000 Cycles | |
| Approvals | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 88JC2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
88JC2 is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 88JC2 is new and unused, you can buy 88JC2 Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 88JC2.
