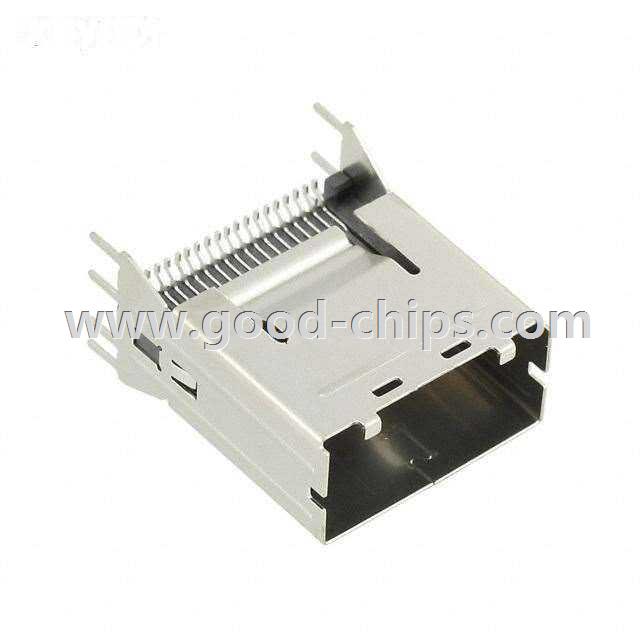

Manufacturer Part Number: | 8AB36-1420-LJ |
---|---|
Manufacturer: | 3M |
Product Category: | Pluggable Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MSAS COMBO VERT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 8AB36-1420-LJ Datasheet |
Internal Part Number | 898-8AB36-1420-LJ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 8AB36-1X2X.stp 8AB36-1X2X.igs 8AB36-1X2X.x_t | |
Category | Connectors, Interconnects | |
Family | Pluggable Connectors | |
Manufacturer | 3M | |
Series | 8AB36 | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | Receptacle | |
Connector Type | SAS, Mini | |
Number of Positions | 36 | |
Mounting Type | Through Hole | |
Termination | Solder | |
Features | Board Guide, Keyed | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Standard Package | 1,400 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 8AB36-1420-LJ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
8AB36-1420-LJ is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 8AB36-1420-LJ is new and unused, you can buy 8AB36-1420-LJ 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 8AB36-1420-LJ.
